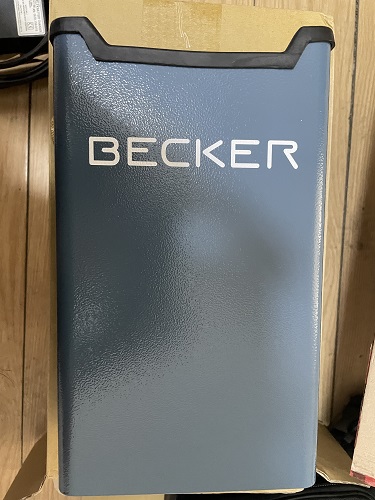

贝克无线电收发机 10W型号:ZXHD/GK616库号：M371880

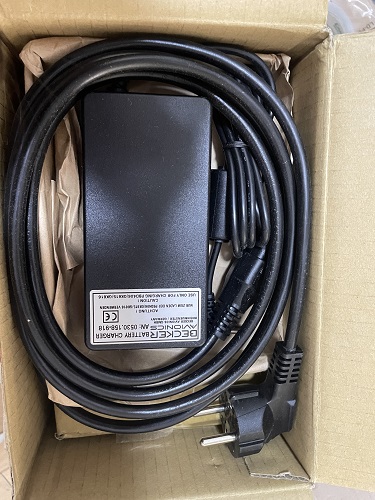

Supply voltage external10...32 VDC via charging device for 115/230 VACDC power source (car battery)Frequency range 118.000...136.9916 MHzChannel spacing 8.33 / 25 kHzNumber of channels 760 (25 kHz mode)2280 (8.33 kHz mode)

Frequency stability < 5 ppm

Storage temperature -55...+85 °C

Operating

temperature

-20...+55 °C

Maximum altitude 35000 ft

TransmitterOutput power≥ 10 W @ into50 Ω at 24 VDC

Type of modulation A3E (amplitude modulation)

Modulation ≥ 70%

Modulation input Dyn. Microphone

ReceiverSensitivity ≤ -101 dBm for (S+N/N) ratio of 6 dB

Squelch Trigger level is adjustableAudio output ≥ 4 W into 4 Ω≥ 100 mW into 600 ΩDimensions HxWxD 85 x 165 x 277 mm

Weight≤ 6.5 kg

Standardsbased on AR6201:ETSO-2C37e, ED-23BEquip. Class D, 5ETSO-2C38e, ED-23BEquip. Class E, 7EUROCAE/RTCAED-14E/DO-160EEUROCAE/RTCAED-12B/DO-178B

Supply voltage external10...32 VDC via charging device for 115/230 VACDC power source (car battery)Frequency range 118.000...136.9916 MHzChannel spacing 8.33 / 25 kHzNumber of channels 760 (25 kHz mode)2280 (8.33 kHz mode)

Frequency stability < 5 ppm

Storage temperature -55...+85 °C

Operating

temperature

-20...+55 °C

Maximum altitude 35000 ft

TransmitterOutput power≥ 10 W @ into50 Ω at 24 VDC

Type of modulation A3E (amplitude modulation)

Modulation ≥ 70%

Modulation input Dyn. Microphone

ReceiverSensitivity ≤ -101 dBm for (S+N/N) ratio of 6 dB

Squelch Trigger level is adjustableAudio output ≥ 4 W into 4 Ω≥ 100 mW into 600 ΩDimensions HxWxD 85 x 165 x 277 mm

Weight≤ 6.5 kg

收发机收发机收发机收发机

Standardsbased on AR6201:ETSO-2C37e, ED-23BEquip. Class D, 5ETSO-2C38e, ED-23BEquip. Class E, 7EUROCAE/RTCAED-14E/DO-160EEUROCAE/RTCAED-12B/DO-178B
