产品概述：

Product overview:

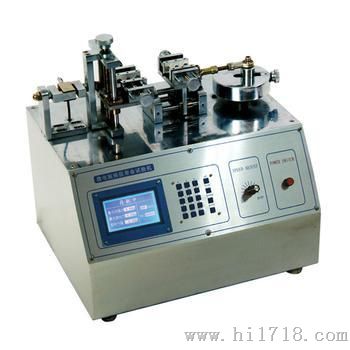

本机器适用于各种连接器之插入力及拔出力测试， 搭配自动求心装置， 将可得到完全准确之插拔力试验， 利用WINDOWS， 视窗宽大中文画面设定，操作简单方便， 且所有资料皆可储存(试验条件， 位移曲线图， 寿命曲线图，检查报表等等)

This machine is suitable for various connector insertion and withdrawal force test, with automatic centering device, will be completely accurate force test, using WINDOWS, windows wide Chinese picture setting, the operation is simple and convenient, and all the information can be stored (test conditions, the displacement curve, life curve, inspection report and so on)

参数：电脑插拔力试验机

Parameters: testing machine computer plug

测定荷重 50，20，10Kg(任选)

Determination of the maximum load of 50, 20, 10Kg (Ren Xuan)

小分解度 0.01Kg或1g

The minimum resolution of 0.01Kg or 1g

测试高度 150mm

The maximum test height 150mm

小微调距离 0.01mm

Minimum trimming distance 0.01mm

测定速度范围 0-200mm／min

Determination of rate of 0-200mm / min

X、Y轴移动范围 0-75mm

X, Y axis range 0-75mm

传动机构 滚珠螺杆

Transmission mechanism of ball screw

驱动马达 伺服马达

Drive motor servo motor

外观尺寸 360x260x940mm

The appearance of size 360x260x940mm

重量 67Kg(机台)

The weight of 67Kg (machine)

电源 220V±10％，50Hz

Power supply 220V + 10%, 50Hz

型号：KXS011

Model: KXS011
