Part No. : 2RF3005-000300

产品规格参数如下：

1. Material of Components:

   1-1. Copper-Body: ZINC Diecast Nickel

   1-2. Insulator: Delrin-500p  Natural

   1-3. Center Contact: Phosphor Bronze. Gold

   1-4. Shell: Spcc Nickel

2. Electrical Characteristics:

    2-1.Impedance: 50Ω

   2-2. VSWR: 1.3 MAX

   2-3. Frequency Range:  0~1GHZ

   2-4. Dielectric Withstanding Voltage: 1500 Vrms,MIN

3. Environmental Characteristics:

    2-1. Temperature Range: -40~ +85 ℃

4. Life Test: 500 Cycles MIN

5. To conform to the EU RoHS Directive。

6. Packing By PET TRAY.

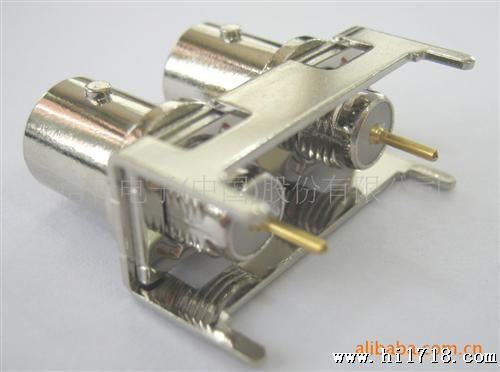

产品细节图如下：

与该BNC Jack匹配的Plug端如下：

P.C.B Layout 如下:



应用：

   广泛应用于安防监控行业，如硬盘录像机(DVR)等。
