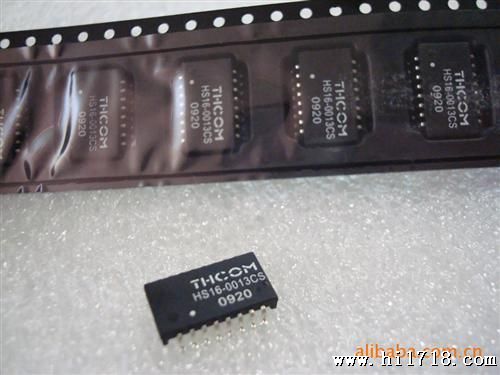

热卖现货安滤波器HS16-0013CS
价格：电议
地区：Chad
电 话：86 0755 33061530
传 真：86 0755 33061530
-
图文详情
-
产品属性
-
相关推荐

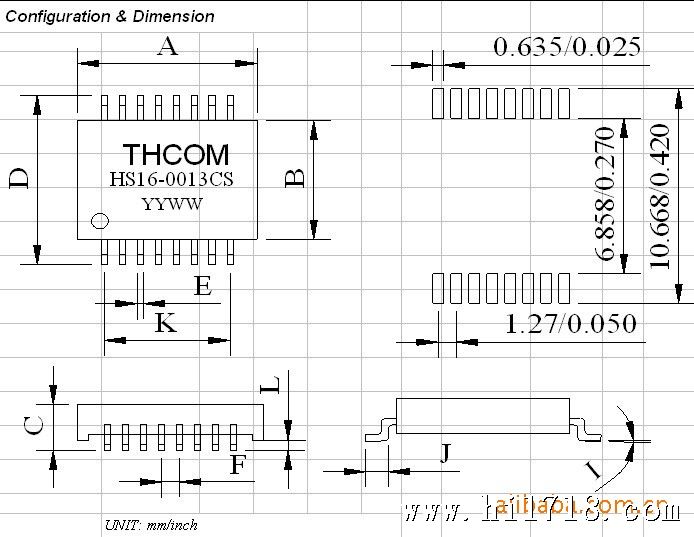

| UNIT: mm/inch | |||||
| A = | 12.90 / 0.51 Max | ||||
| B = | 7.1 / 0.279 Max | ||||
| C = | 2.5 / 0.098 Max | ||||
| D = | 9.45±0.25 / 0.372±0.010 | ||||
| E = | 0.46 / 0.018 Typ | ||||
| F = | 1.27 / 0.050Typ | ||||
| I = | 0~80 | ||||
| J = | 1.20 / 0.047 Typ | ||||
| K = | 8.85±0.25 / 0.348±0.010 | ||||
| L = | 0.25 / 0.00984 Typ | ||||

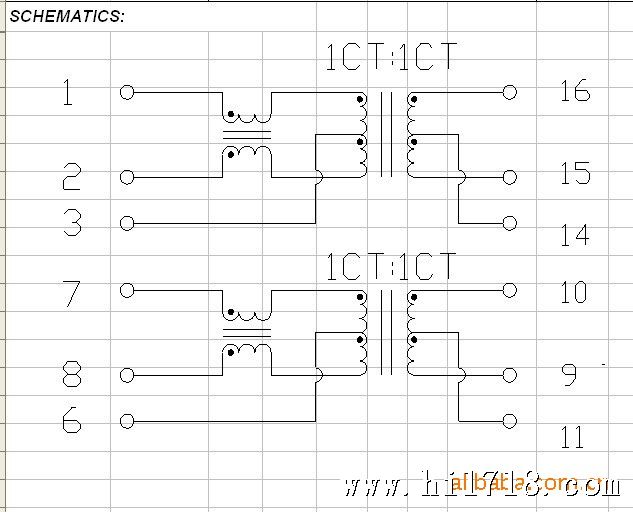

线路图：
电气特性：
| ELECTRICAL SPECIFICATIONS @25℃: | ||||||
| 3-1. | Inductance OCL: | |||||
| @350uH Min,100KHz 0.1V | ||||||
| 3-2. | Insertion Loss: | |||||
| @300KMz-100MHz -0.9dB Max (Tx/Rx) | ||||||
| 3-3. | Return Loss: | |||||
| @30MHz -16dB Min (Tx/Rx) | ||||||
| @60MHz -12dB Min (Tx/Rx) | ||||||
| @80MHz -11dB Min (Tx/Rx) | ||||||
| 3-4. | Cross Talk: | |||||
| @30MHz -50dB Min (Tx TO Rx) | ||||||
| @62MHz -45dB Min (Tx TO Rx) | ||||||
| @100MHz -40dB Min (Tx TO Rx) | ||||||
| 3-5. | Differential to Common Mode Rejection : | |||||
| @30MHz -35dB Min (Tx TO Rx) | ||||||
| @50MHz -33dB Min (Tx TO Rx) | ||||||
| @100MHz -20dB Min (Tx TO Rx) | ||||||
| 3-6. | Turn Ratio: | |||||
| @1CT:1CT(TX)/1CT:1CT(RX)±5% | ||||||
| 3-7. | Polarity: | |||||
| @1-16,7-10 In-Phase | ||||||
| 3-8. | Isolation HI-POT: | |||||
| @1500VAC 1S 1mA | ||||||
| ① | @Operating Temp Range: 0℃ TO 70℃. | |||||
