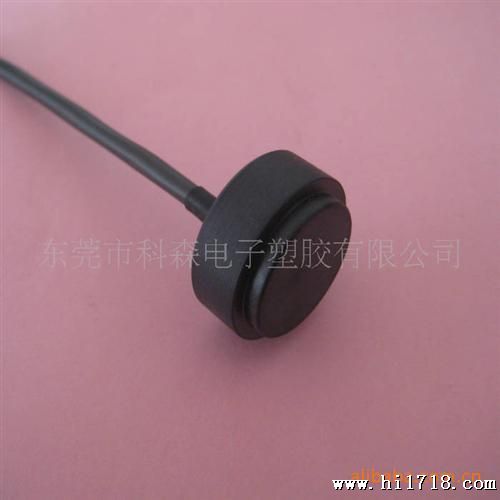

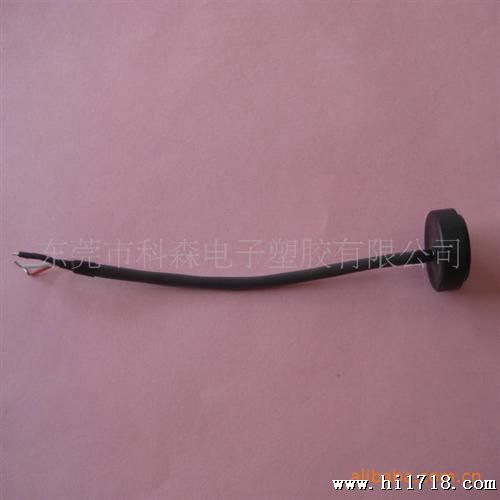

超声波流量计传感器，收发一体，1MHZ

CHARACTERISTICS
Part number                                          KS-20-1.0TR
Construction                                         High-frequency
Using method                                          Dual use
Center frequency                                   1.0MHz±5%
Bandwidth                                                 0.2MHz
Echo Sensitivity
0dB = 3Vp-p, 8 Bursts, 8 cm                     -30dB min
Min. Parallel Resistance                             130Ω±30%
Capacitance                                             1200Pf±20%
Max. Input Voltage (Pulse)                         500Vp-p
Directivity（-3dB）                                        7°±2°
Distance of Detection                                 0.1~5M
Pressure Resistance                                    1.5MPa
Material                                                           PPS
Operating temperature                                 0°C~+95°C
y All specification taken typical at 25°C

-安用C8es:探东喇

我厂产销中的：蜂鸣器（压电式/电磁式/贴片式/SMD贴片式），压电陶瓷蜂鸣片，超声波雾化片，超声波传感器，超声波换能片，喇叭，超声波喇叭，传声器咪头，受话器等电声元器件，具有：性能稳定，持久耐用，耐高温，抗跌落，可过波峰焊等优点。的mMtcu：5

详细的技术资料，请参考：s可8：PAK广

https://www.ke-sen.com

欢迎您的选购！：鸣eN厂器：久

我们将竭诚为您服务！0图鸣电s/I雾

DONGGUAN KE-SEN ELECTRONIC PLASTIC CO.,LTDc7区/厂站8.

TEL:    FAX:喇持式式峰蜂Rt

ADD:广东省东莞市长安镇沙头滨河路96号

E-MAIL： hh.！C请o考

网站： https://www.ke-sen.com 参：X喇鸣a喇t
