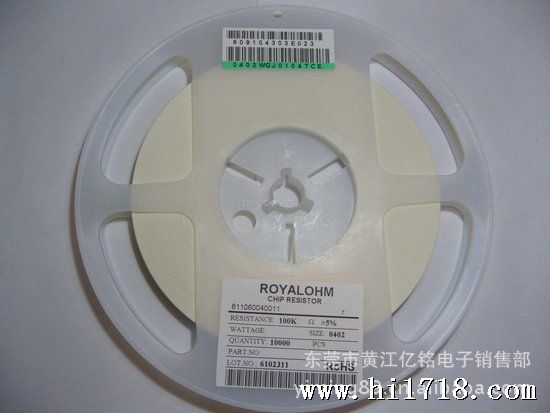

太诱贴片电阻
价格：电议
地区：广东 东莞市
电 话：86 0769 83516529
传 真：86 0769 83666181
-
图文详情
-
产品属性
-
相关推荐
ART NO.: CHIP RESISTORS FILE NO.:
1. INSTRUCTION:
THIS SHEET IS THE STATEMENT OF THETHICK FILM CHIP RESISTORSSPECIFICATION THATROYALOHM’SPRODUCTIONS CAN MEET.
2. RATING:
TYPE | 0402 | 0603 | 0805 | 1206 | 1210 | 2010 | 2512 | ||
POWER RATING | 1/16W | 1/10W | 1/8W | 1/4W | 1/3W | 3/4W | 1W/2W | ||
MAX.WORKING VOLTAGE | 50V | 50V | 150V | 200V | 200V | 200V | 200V | ||
100VMAX. OVERLOAD VOLTAGE | 100V | 100V | 300V | 400V | 400V | 400V | 400V | ||
DIELECTRIC WITHSTANDING VOLTAGE | 0402：100V；0603：300V；other：500V | ||||||||
RESISTANCE RANGE | ±1% | 0402：100W--1MW；other 10W--1MW | |||||||
±5% | 0402：100W--1MW；other 1W--10MW |
| |||||||
TOLERANCE | ±1%, ±5% | ||||||||
RATED AMBIENT TEMP. | 70℃ | ||||||||
TEMP.RANGE | -55℃--- +125℃ | ||||||||
