LDA型0.5～20t电动单梁起重机

      订货须知：
     １.订货前应确定起重机下列主要参数：起重量、跨度、起升高度、工作制度、轨道型号、操纵室型式与开门方向等
      2.当露天使用时，需带防雨设施。

      3.网站所标价格均为参考价格，不构成合约价格，终价格由客户所提供的参数确定，在销售合同中载明。

      我公司生产各种型号起重机，为回报新老客户，特推出售后超长18个月的质保服务。欢迎新老客户选购我公司产品。

      销售服务热线：   13906691271

     产品详细说明：

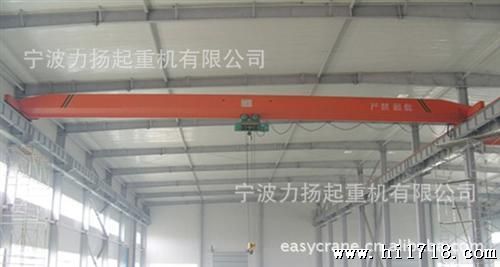

      LDA型电动单梁起重机具有结构合理,整机刚性强的特点。整机是一种轻小型起重机械。起重量为0.5t～20t，跨度为7.5～21.5m，工作级别为A3～A5，工作环境温度为-25～+40℃。

    该起重机适用于机械加工车间、仓库等场所作一般装运和搬卸物件的工作。操作形式为地操、遥控、地操加遥控及空操、空操加遥控等五种形式。

    LDB防爆电动单梁起重机与HB隔爆型电动葫芦、防爆控制箱及其它防爆电气设备配套使用，在地面操作，是一种有轨运行的轻小型起重机。该起重机防爆标志为Ex,适用于工厂具有防爆级别为ⅡA、ⅡB、ⅡC级，温度组别为T1～T4的可燃性气体或蒸汽与空气构成的爆炸性气体混合的场所。

   LDA Type Electric Single-girder Crane has such features as reasonable structure and fine rigidity.It is a kind of light-small hoisting machinery.Its lifting capacity is 1t～10t, and its span is 7.5～22.5m, working classification is A3～A5 and the ambient temperature is -25～+40℃.
    This kind of cranes is applicable to carry and unload objects at mechanical processing workshops and warehouses etc.It can be controlled from the ground、in the driver's cabin、remote control、ground and remote control、in the driver's cabin and remote control etc.
    LDB Explosion-proof Electric Single-girder Crane fitted with HB explosion-proof electric hoist, explosion-proof control box and other explosion-proof electrical equipments. It is usually controlled from the ground, and it is a kind of light and small crane with track。 Its explosion-proof mark is Ex。It is applicable at such sites with explosive gas mixture combined by combustible gas, steam and air where the classification is ⅡA、ⅡB、ⅡC and the temperature group is T1～T4。

 简图：

                                                            技术参数表

Technical Parameter Table
