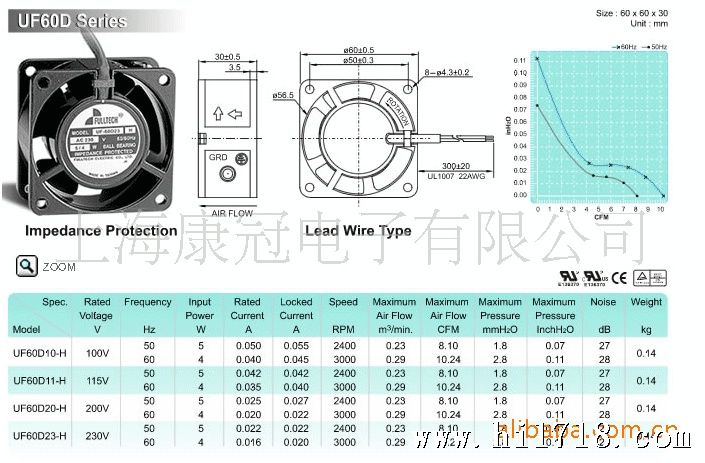

MODEL

   ITEM

UF-60D23B-H

RATED VOLTAGE

AC230V

VOLTAGERANGE

AC207-253V

SPEED(RPM)

50Hz 2550 RPM±10%

60Hz 3100 RPM±10%

RATED CURRENT

50Hz  0.022  A±10%

60Hz  0.016  A±10%

RATED INPUT

50Hz   5   W±10%

60Hz   4   W±10%

LOCKED CURRENT

50Hz  0.022  A±10%

60Hz  0.020  A±10%

MAX.AIR VOLUME

50Hz   8.10  CFM

60Hz   10.24  CFM

MAX.STATIC PRESSURE

50Hz   0.07   inH2O

60Hz   0.11   inH2O

OPERATING TEMP.

-20°C~+70°C

STORAGE TEMP.

-40°C~+80°C

ROTATING DIRECTION

ANTI-CLOCK DIRECTION

BLOWING DIRECTION

EXHAUST OVER STRUTS

INSULATION RESISTANCE

DC 500 V 100MΩ

DIELECTIC STRENGTH

AC 1500V / 1MIN.

NOISE

50Hz  27  dB

60Hz  28  dB

SAFETY PROTECTION

IMPEDANCE PROTECTION

INSULATION GRADE

CLASS  A

BEARING

BALL BEARING

LIFE EXPECTANCY

OVER 40000 HOURS (40℃)

FRAME MATERIAL

ALUMINUM (ADC-12)

IMPELLER

PLASTIC 94V-0 PBT.

COVERING GLASS FIBRE

DIMENSION

60*60*30 mm

WEIGHT

0.14 KGS.
