Product Facts
■ Available position sizes:
■ For single connector:
120, 160, 200, 220, and
240 positions
■ For bridged connectors:
240, 320, and 440
positions
■ Available stacking heights:
■ 5mm, 6mm, 7mm, 8mm,
9mm, 11mm, 12mm,
15mm, and 16mm
(limited by position sizes)
■ Giga ground shielding
options on all parts
■ RoHS Compliant part
numbers available
■ Polarized locating posts

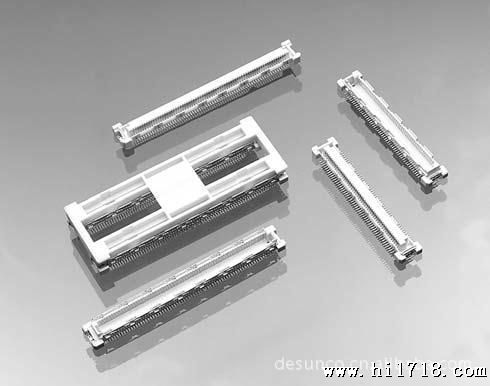

0.5mm Free Height is a
two-piece connector system
designed for parallel
board-to-board stacking
applications. The contact
system is identical to our
popular 0.6mm FH product.
The 0.5mm FH product has
been chosen by the
PICMG COM Express working
group as the interface
between embedded modules
and carrier cards.
Applications

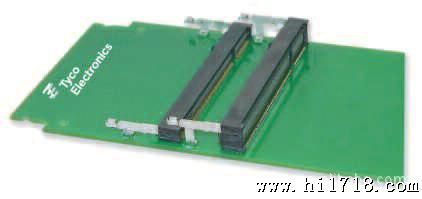

Parallel board-to-board for
stacking applications that
require high density. The
.5mm FH product is specified
by the PICMG COM
Express standard as the
module to carrier card
interface. All stacking applications
including Computer,
Telecommunications, and
Industrial industries.
Mechanical Properties
Operating Temperature —
-40°C to +85°C
Durability — 30 cycles
Current Rating — 0.5A
Voltage Rating — 50 VAC
Dielectric Withstanding Voltage—
200 VAC
Technical Documents
Product Specification
108-5560
Test Reports
501-5226
