供应HDMI M-M 数据连接线
价格：电议
地区：江苏 常州市
电 话：86 519 88521276
传 真：86 519 88521203

常州莱琪电子有限公司

免费会员 营业执照未上传

>
全部产品 进入商铺

供应HDMI  注塑头型   公对公   镀金头， 高清数据连接线





Description



l        Reference standard: High-Definition Multimedia Interface Specification Version 1.3b

l        Rate temperature:80℃，Rate voltage:30V

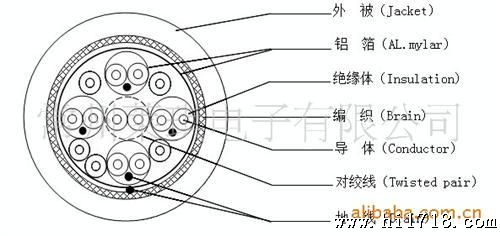

l        Signal transmission Pairs: Twisted Pairs all with AL-Mylar shield,drain wires and Mylar ;Or drain wire,Free-edge Al shielded

l        Conductor:32AWG-22AWG stranded Tinned copper,Bare copper or Slivered copper

l        Shield Pair Insulation :Foamed PE

l        Drain Wire:32AWG-22AWG stranded copper,etc.

Unshielded twisted  Pair and single wire

Conductor:32AWG-22AWG

Tinned copper,Bare copper

Wire insulation:PP PE

l        Filler:Optional

l        Outer Shield:

   AL/Mylar and Braid(Tinned Copper or Aluminium Magnesium Alloy) or shield 85%(min)Coverage

l        Jacket:PVC or Customer Definition

l        Print Legend:UL20276+HDMI 1.3Logo

l        Passes  UL VW-1vertical flame test
