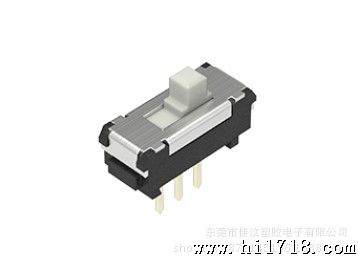

供应拨动开关 ALPS/阿尔卑斯 5.0（H）mm,2.0mm行程 SSSS9系列
价格：电议
地区：广东省 东莞市
电 话：86-0769-82388879
手 机：13580899958
-
图文详情
-
产品属性
-
相关推荐
| 产品编号 | SSSS912000 | |
| 行程 | 2mm | |
| 操作部方向 | Vertical | |
| 操作部长度 | 2mm | |
| 电路数 | 1 | |
| 接点数 | 2 | |
| 动作力 | 3±1.5N | |
| 安装方法 | Standard | |
| 切换时限 | Non shorting | |
| 焊接方法 | Manual, Dip | |
| 使用温度范围 | -40℃ to +85℃ | ||
| 额定/小额定(电阻负载) | 0.1A 12V DC/1mA 5V DC | ||
| 电性能 | 接触电阻 (初期/寿命后) | 30mΩ max./80mΩ max. | |
| 绝缘电阻 | 100MΩ min. 500V DC | ||
| 耐电压 | 500V AC for 1 minute | ||
| 机械性能 | 端子强度 | 3N for 1 minute | |
| 操作部强度 | 操作方向 | 30N | |
| 拉引方向 | 10N | ||
| 耐久性能 | 负载 | 10,000 cycles 60mΩ max. | |
| 无负载(额定负载) | 10,000 cycles 80mΩ max. | ||
| 耐环境性能 | 耐寒性能 | -40±2℃ for 500h | |
| 耐热性能 | 85±2℃ for 500h | ||
| 耐湿性能 | 60±2℃, 90 to 95%RH for 500h | ||
| SSSS912000 | 2mm | Vertical | 2mm | 1 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS910400 | 2mm | Vertical | 2mm | 1 | 2 | 3±1.5N | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSS919500 | 2mm | Vertical | 2mm | 1 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS918500 | 2mm | Vertical | 2mm | 1 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Snap-in (t1.6) | Not specified | Manual, Dip | |
| SSSS922000 | 2mm | Vertical | 2mm | 2 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS921800 | 2mm | Vertical | 2mm | 2 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS912500 | 2mm | Vertical | 4mm | 1 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS910800 | 2mm | Vertical | 4mm | 1 | 2 | 3±1.5N | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSS919800 | 2mm | Vertical | 4mm | 1 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS918700 | 2mm | Vertical | 4mm | 1 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Snap-in (t1.6) | Not specified | Manual, Dip | |
| SSSS922500 | 2mm | Vertical | 4mm | 2 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS923200 | 2mm | Vertical | 4mm | 2 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS920600 | 2mm | Vertical | 4mm | 2 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Snap-in (t1.6) | Not specified | Manual, Dip | |
| SSSS916900 | 2mm | Horizontal | 2mm | 1 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS915000 | 2mm | Horizontal | 2mm | 1 | 2 | 3±1.5N | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSS91B900 | 2mm | Horizontal | 2mm | 1 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS926400 | 2mm | Horizontal | 2mm | 2 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS928500 | 2mm | Horizontal | 2mm | 2 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS916400 | 2mm | Horizontal | 4mm | 1 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS914500 | 2mm | Horizontal | 4mm | 1 | 2 | 3±1.5N | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSS91B600 | 2mm | Horizontal | 4mm | 1 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS91A600 | 2mm | Horizontal | 4mm | 1 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Snap-in (t1.6) | Not specified | Manual, Dip | |
| SSSS925800 | 2mm | Horizontal | 4mm | 2 | 2 | 3±1.5N | Standard | Non shorting | Manual, Dip | |
| SSSS923800 | 2mm | Horizontal | 4mm | 2 | 2 | 3±1.5N | Snap-in (t1.6) | Non shorting | Manual, Dip | |
| SSSS928200 | 2mm | Horizontal | 4mm | 2 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Standard | Not specified | Manual, Dip | |
| SSSS925700 | 2mm | Horizontal | 4mm | 2 | 3 | a, c → b 2±1N b → a, c 3±1.5N | Snap-in (t1.6) | Not specified | Manual, Dip |
| 小订货单位(pcs.) | 日本 | 100 |
| 出口 | 5,000 |
