D-SUB 连接器 DRB
价格：电议
地区：广东 深圳市
传 真：0086 0755 82055149
-
图文详情
-
产品属性
-
相关推荐

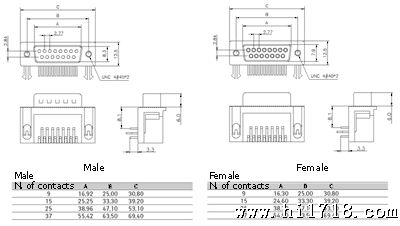

D-SUB连接器
DRB-9F DRB-9M,DRB-15...
Materials | |
| Insulator: | PBT, rated UL94-0, black color |
| Contacts: | brass, gold plated over 50µm nickel on mating area 100µm tin plated over 50µm nickel on solder tail |
| Shell: | steel |
| Rivet boardlock: | cooper alloy |
Electrical | |
| Dielectric withstanding voltage: | 1000V AC for one minute |
| Current raiting: | 3A max |
| Insulaton resistance: | 3000MOm min at 500V DC |
| Contact resistance: | 15mOm max |
Mechanical | |
| Operation temperature: | -55oC - +105oC |
Options | |
| No. of contacts: | 09, 15, 25, 37 |
| Contact plating: | selective gold plated, gold plated, 5µm gold plated, 10µm gold plated, 15µm gold plated, 30µm gold plated |
| Connector type: | male, female |
