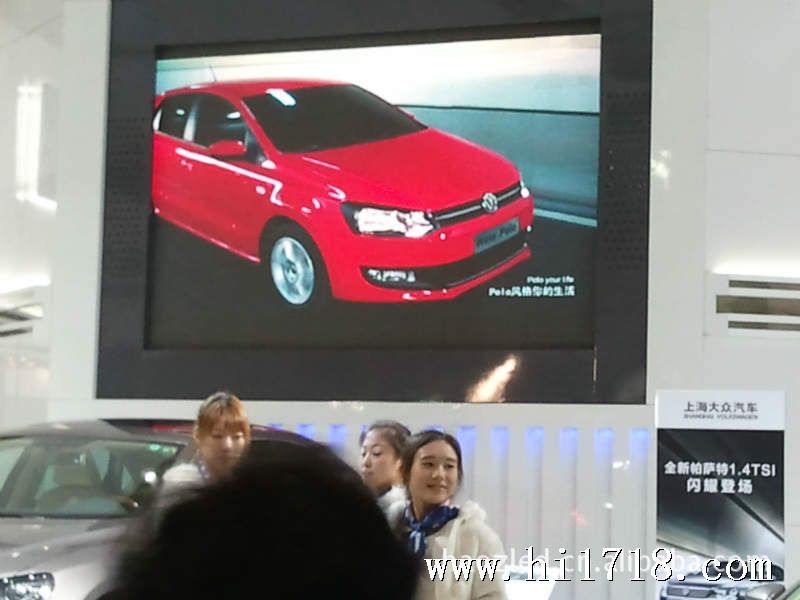

P7.62室内全彩LED显示屏
价格：电议
地区：上海
电 话：86 021 64274481
传 真：86 021 64274561
-
图文详情
-
产品属性
-
相关推荐
| P7.62三合一表贴技术参数： | |||
| 技术参数Technical parameters | 单位UNIT | ID7FRGB8S3216 | |
| 单元板 | 物理点间距Pixel pitch | MM | 7.62 |
| 模块尺寸Panel size | MM | L243.84XH121.92X14 | |
| 物理密度Physical density | /M2 | 17222 | |
| 像素基色Pixel configuration | R/G/B | 1,1,1 | |
| 驱动方式Driving method | 1/8恒流扫描Constant current 1/8scan | ||
| LED封装方式LED Encapsulation | DIP | 3528 | |
| 显示分辨率Display resolution | DOTS | 32X16=512dots | |
| 模块重量Module weight | KG | 0.26 | |
| 模块接口Module port | HUB08 | ||
| 模块工作电压Module working voltage | VDC | 5 | |
| 模块功耗Module consumption | W | 18 | |
| 显示屏 | 视距Option distance | M | 7-85 |
| 每平米模块数Every square metre module | PCS | 33.64 | |
| 模块视角Viewing angle | Deg. | H120 V120 | |
| 功耗Maximum power | W/ M2 | 600 | |
| 驱动器件Driving device | 16126 | ||
| 换帧频率Frame Frequency | HZ/S | ≥60 | |
| 刷新频率Refresh frequency | HZ/S | ≥400 | |
| 白平衡亮度Equilibrium brightness | CD/ M2 | ≥1800 | |
| 工作环境温度Working environment temperature | 0C | -20~60 | |
| 工作环境湿度Working environment humidity | RH | 10%～90% | |
| 屏体工作电压Display working voltage | VAC | AC46～54HZ，220V±15%/110V±15% | |
| 白场色温Colour temperature | 6500K-9500K | ||
| 灰度/颜色Gray scale/color | ≥16.7M color | ||
| 输入信号Input signal | RF\ S-Video\ RGB etc | ||
| 控制系统Control system | PCTV非线性卡nonlinearity card+DVI显卡display card+Linsn control system | ||
| 平均无故障时间Mean free error time | HOURS | ＞5000 | |
| 寿命Life | HOURS | 100000 | |
| 杂点率Lampfailure frequency | ＜0.0001 | ||
| 抗干扰Antijam | IEC801 | ||
| 安全Safety | GB4793 | ||
| 抗电击Resist the electricity | 1500V last 1min无击穿及飞狐No breakdown | ||
| 屏体重量Steel box weight | KG/ M2 | 50（标准箱体standard steel box） | |
| 漏电电流Earth leakage current | mA | ||
| IP等级IPrating | The back IP40，The front IP50 | ||
| 箱体尺寸Steel box size | mm | L975Xh731x100 | |
