Threaded resistance thermometer
Model TR10-D, miniature design

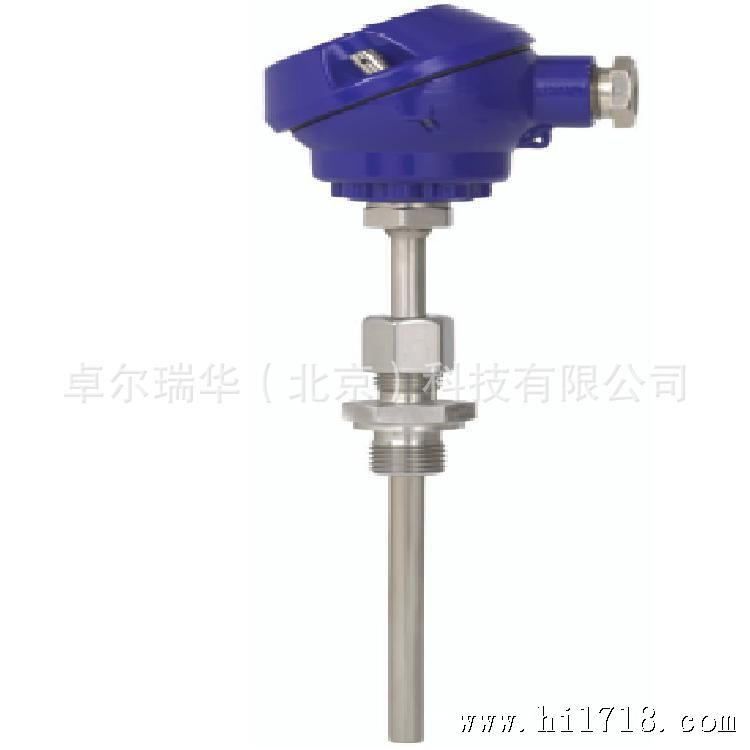

Threaded resistance thermometer, miniature design
model TR10-D

         Applications
        Machine building, plant and vessel construction
        Power train engineering
        Air-conditioning and refrigeration systems
     Special features
              Application ranges from -200 ... +500 °C
        Compact design
        Universal application
        Direct installation into the process

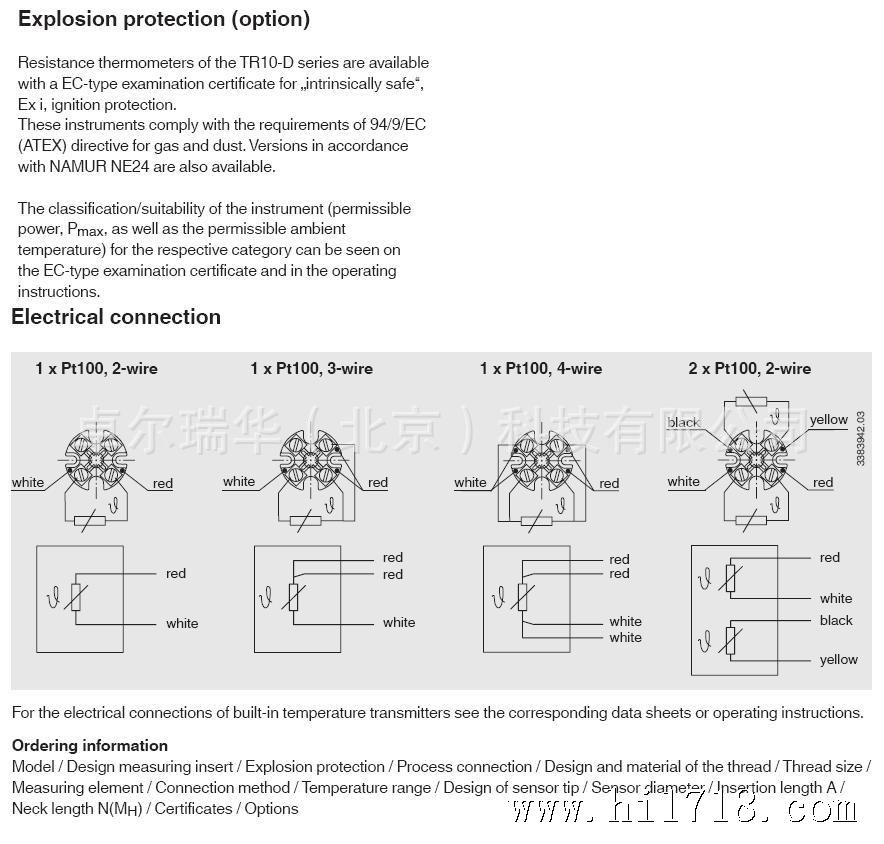

        Explosion-protected versions Ex i, Ex n and NAMUR NE24

     Description
        Resistance thermometers of this series are used for the measurement of liquid or gaseous media at low and medium pressures. The resistance thermometer is screwed directly into the process. The electrical connection is made via terminals

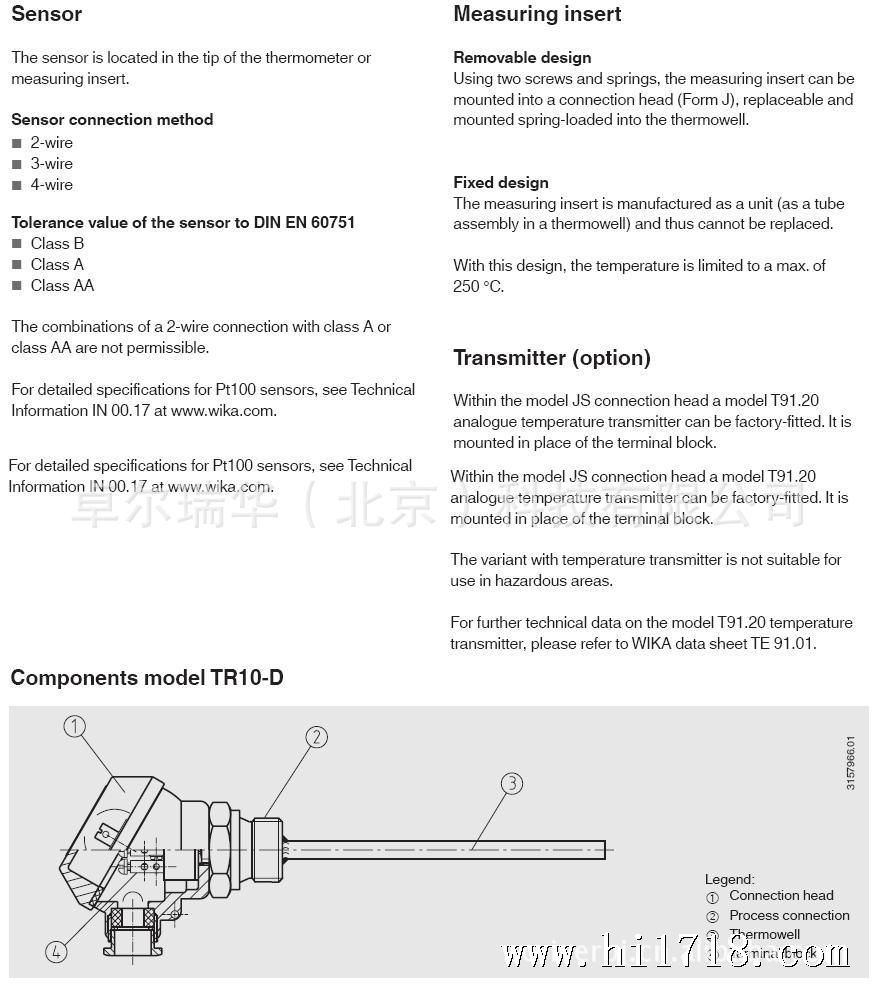

in the connection head (protected against splashed water). The measuring inserts are available in two variants, depending upon the application. The choice is between a
replaceable, spring-loaded miniature measuring insert and a non-replaceable, permanently screwed-in design.

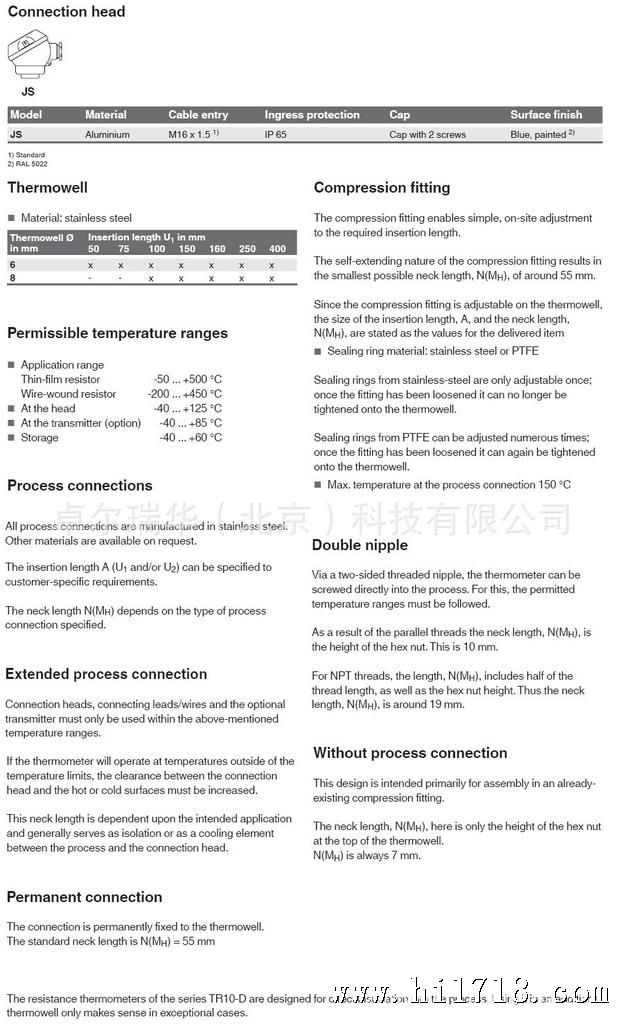

       Insertion length, process connection and sensor can each be selected for the respective application.
