供应MINI SAS 连接器(SFF-8087)
价格：电议
地区：广东 东莞市
电 话：86 769 81886766
传 真：86 769 81886755
-
图文详情
-
产品属性
-
相关推荐

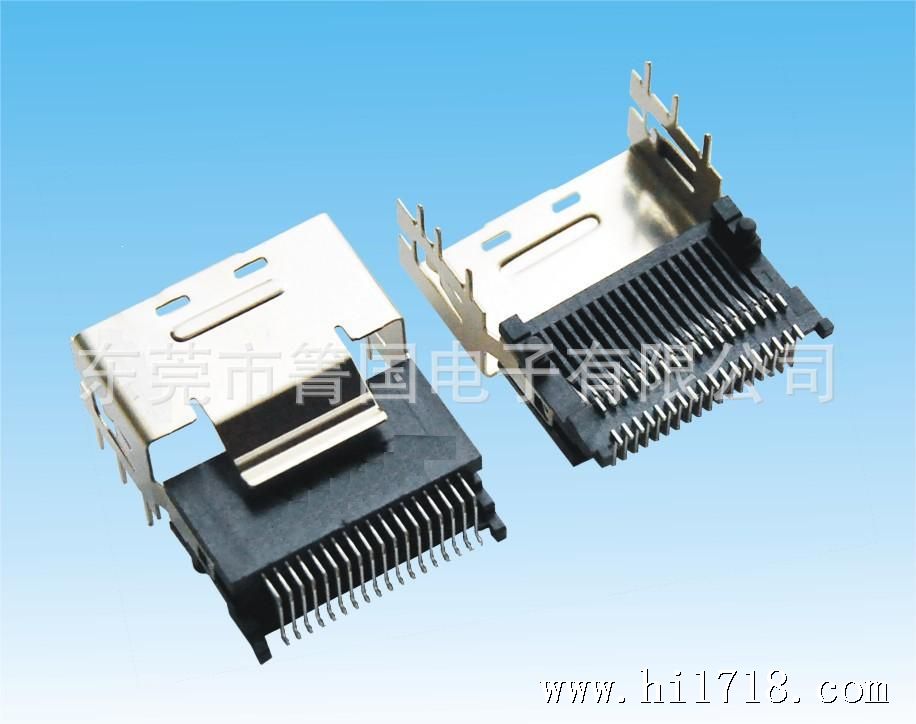

供应 MINI SAS 连接器
| Product Family | I/O Connectors |
| Series | 111049 |
| Application | Module-to-Board |
| Comments | Port 1 Keying 2 and 4 |
| Component Type | Guide |
| Overview | iPass™ |
| Product Name | iPass™, SAS |
| Type | N/A |
| Boot Color | N/A |
| Circuits (Loaded) | 26 |
| Circuits (maximum) | 26 |
| Gender | N/A |
| Keying to Mating Part | Yes |
| Lock to Mating Part | Yes |
| Material - Metal | Zinc Alloy |
| Material - Plating Mating | Nickel |
| Number of Rows | 2 |
| Orientation | Horizontal |
| PC Tail Length (in) | 0.000 In |
| PC Tail Length (mm) | 0.00 mm |
| PCB Locator | Yes |
| PCB Retention | Yes |
| PCB Thickness Recommended (in) | 0.062 In, 0.093 In, 0.125 In |
| PCB Thickness Recommended (mm) | 1.60 mm, 2.38 mm, 3.20 mm |
| Packaging Type | Tray |
| Panel Mount | Yes |
| Pitch - Mating Interface (in) | 0.031 In |
| Pitch - Mating Interface (mm) | 0.80 mm |
| Pitch - Term. Interface (in) | 0.031 In |
| Pitch - Term. Interface (mm) | 0.80 mm |
| Polarized to Mating Part | No |
| Polarized to PCB | Yes |
| Ports | 1 |
| Surface Mount Compatible (SMC) | No |
| Temperature Range - Operating | -40°C to +80°C |
| Termination Interface: Style | Through Hole |
| Waterproof / Dustproof | No |
| Wire Insulation Diameter | N/A |
| Wire Size AWG | N/A |
