90wattuniversal laptop Specification

Model:LD-AC90W-LCD

General Description:

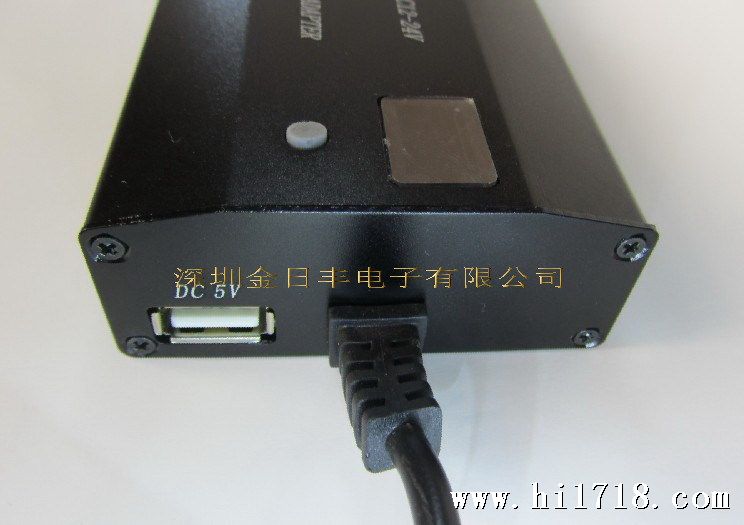

This model is an universal switching-mode power supply, main power for laptop, a USB port , charge mobile equipment .such as mobile telephone .PDA.MP4.MP3…etc

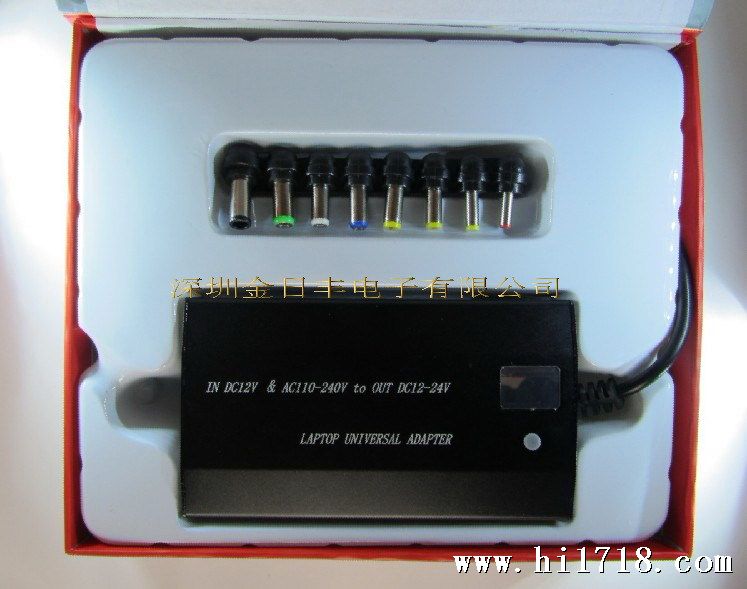

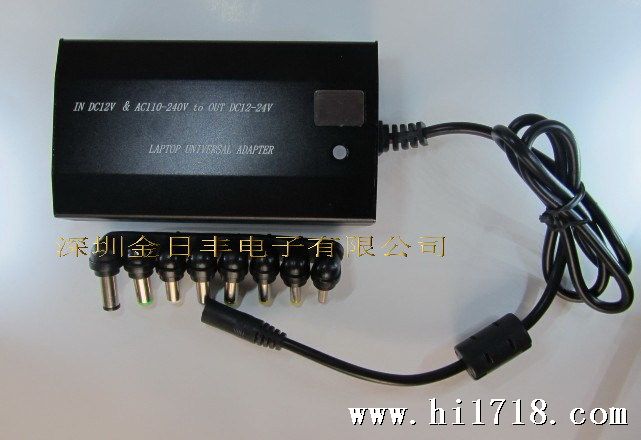

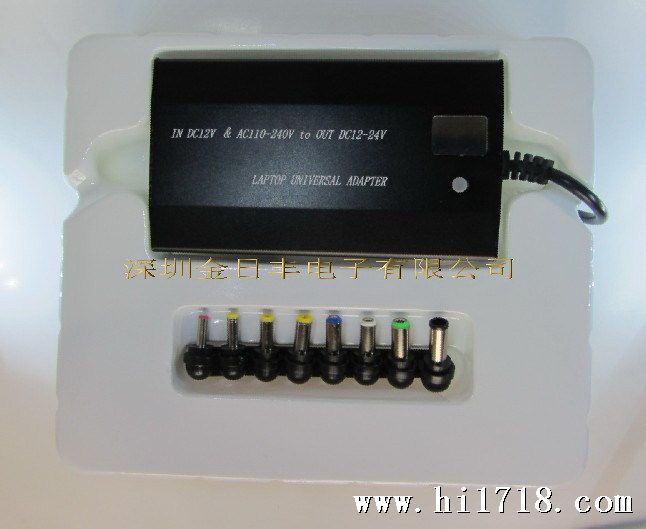

LD-AC90W-LCD operation at input AC 100V to 260V 47-63Hz, Output DC 7 voltages: 12V/15V/16V/18V/19V/20V/22V/24V, output current4.5Amp max90 Wattmax, with protection functions: Overload protection, Short Circuit Protection, power supply by mains supply. With 8 tips connecter to suit to almost laptops, Select output voltage to suit to laptop and make sure the polarity of tips connect correct before use

Power Source: mains supply

Use your outlets to plug in at home or office or in the hotel

Select a tip for your laptop , then adjust voltage to suit to your laptop (laptop voltage marked on the brand of laptop)

Note: Not every laptop is created equal with that in mind ,EWAD13065 supports most major laptop brands

1. Electric Characteristics:

2.Weight:470g

3. Case Size: 131.5mm*58.8mm*37.7mm

4. Normal Operating Temperature and Humidity:

  4.1 Operating Temperature: 0℃to 40℃

  4.2 Humidity: 20% to 80%

5. Storage Temperature and Humidity:

  5.1 Storage Temperature: -10℃to 70℃

  5.2 Humidity: 10% to 90%

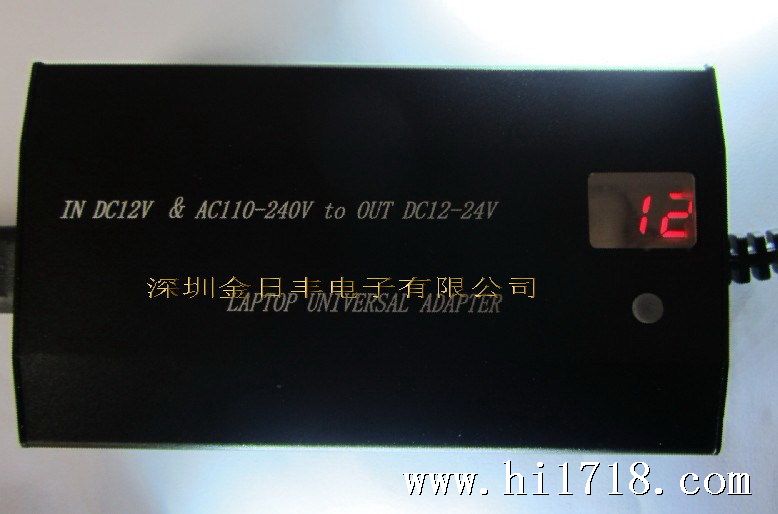

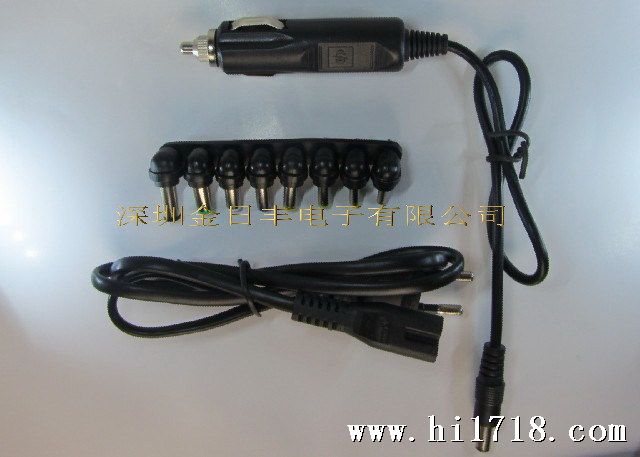

AC90W-LCD 型号：LD-90W-LCD 额定输入: AC120V---AC230V(50-60HZ) 2>输入: AC100V---AC260V 3>功耗: 1.0Amp 4>额定电流: 120VA 5>输出功率: 90W 6>效率: ＞80%(TYP) 7>输出电压; "15V/16V/18V/19V/20V/22V/24V(0---+0.8V No load) 12V/15V/16V/18V/19V/20V/24V(0---+0.8V No load) USB Port:5V(0---+0.2V No load)*2PCS" 8>输出电流: "12V/15V/16V/18V/19V/20V at 4.5A, 22V/24V at 3.75A USB port:5V(rating load) 1A max *2PCS" 9>过载保护: yes 10>过压保护: yes 11>短路保护: yes 12>纹波噪声: 1000mV 13>电路调整率: ±5% 14>负载调整率: ±5% 15>工作温度: 温度 0℃---40℃ 16>工作湿度: 湿度 20%---80% 17>贮藏温度: 温度 -0℃---40℃ 18>贮藏湿度: 湿度 10%---90% 19>尺寸: 58.8×37.7×131.5mm 20>净重: 499.60G 21>颜色: Black 22>材料: ABS 23>功能: "1) 附有8个不同的DC头适配于绝大部分流行的笔记本电脑(核对您的笔记本查看输出电压与充电端子) 2) 采用脉冲宽度技术控制输出电压: 3) 具有过载保护,过压保护,短路保护等多重功能装置. 4) 多档电压输出,可方便地拨动开关选择您需要的充电电压,且有输出电压显示,更能同时给手机,MP3/MP4等充电. 5) 可搭配更多DC头,如IBM,TOSHIBA,DELL.HP.ACER 等 6) LCD电压档位显示。" 24>使用说明: "1) 拨动电压档位至您需要的位子. (从您的笔记本底部可以看出你需要的电压) 2) 选择你需要充电端子,插入适配器的输出端. 3) 将AC电源线插入AC电源座,此时笔记本电源工作指示灯亮,此时将输出端的DC头插入笔记本.电源工作开始。" 25>包装附件: "1) 1条适合于贵国使用的AC电源线 2) 8个不同的充电端子(DC头) 3) 1个电源适配器."
