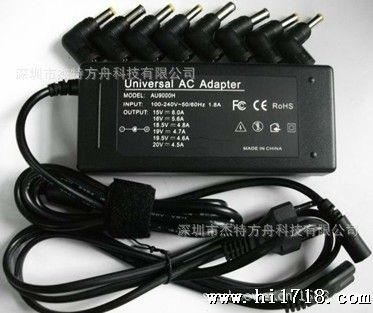

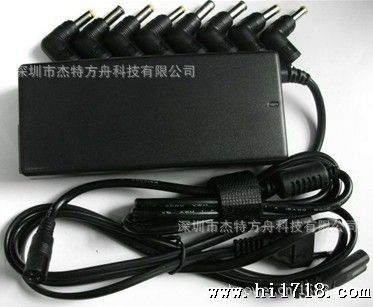

本通用型电源适配器输出功率为90W.
不同型号的多款笔记本电脑,
其中包括Samsung,Sony,Toshiba,Acer,BenQ,Lenovo,Compaq,Dell,HP,IBM和其他众多品牌。此款充电器有5档电压输出,可自动调节到笔记本相应的电压。并带有8个可以简易更换的DC插头,如需用在不同品牌不同型号的笔记本上,仅需要参照笔记本输入要求调整电压和更换匹配的DC插头即可。8个DC头规格:6.5 * 4.3mm 6.3 * 3.0mm 5.5 * 2.5mm 5.5 * 2.1mm 5.5 * 1.7mm 4.8 * 1.7mm 4.0 * 1.7mm 3.5 * 1.35mm.
功能特性:
产品型号: MYH-AC90W自动调压 输出电压: DC15/16/18.5/19.5/20v 输出电流: DC15/16/18.5V 5.0A 19.5/20V 4.5A 输入电压: DC12V 电压适应范围:DC11-15V 输入电流:1.8A 小输入电流:0.1A 输出功率: 90W 功率因数: >88% (TYP) 过载保护: 有 过压保护: 有 短路保护: 有 载波干扰: 500mV 线路损耗: 1% 空载损耗: 1% 体积: 132 * 58 * 31mm 重量: 510g 包装: 吸塑 信息: CE FCC ROHS 保修时限: 1 年 小起定量: 100PCS
90W AC UNIVERTER LAPTOP ADAPTER
Product Specification:
AC INPUT :110-240V 10A(MAX)
DC OUTPUT :15-20V6A(MAX)
USB OUTPUT :5V-1A5W(MAX)
Power:90W(MAX)
Size:96.5*41.5*22.5mm
Operation steps:
When you want to change or supply power to laptops,connect the Point Cigarette into the Cigarette Lighter;Choose the right tip,which the voltage should be the same as your laptop input voltage;Join the tips to the DC output;Put the Jined DC tip to the laptops then it can be used.
Usage Notice:
Please read carefully about the user manual of your laptops to ensure the technical datasheet are compatible with before using.We are not responsible for any damage caused by incorrect operation.
Attention:
For Auto use only and keep it away from high temperature or high moisture environment(Working:-10℃~50℃).
It`s a common phenomenon for the unit to feel hot when using.
Please don`t fall down or bump it in order to avoid the damage of electronic components.
Do not disassemble by yourself.

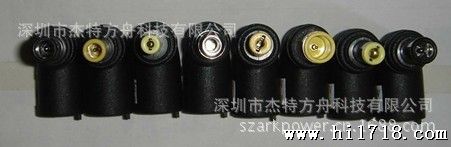

DC Connector Specifications
Code | Output Voltage | Specs | Laptop Brand Compatibility List |
M1 | 15.0V/MAX90W | 6.3*3.0mm | Toshiba |
M2 | 16.0V/MAX90W | 5.5*2.5mm | IBM,Lenovo |
M3 | 16.0V/MAX90W | 6.5*4.4mm | Sony,Fujitsu |
M4 | 18.5V/MAX90W | 4.8*1.7mm | HP/Compaq |
M5 | 19.0V/MAX90W | 5.5*2.5mm | Acer’Compaq’Delta’Hp’Fujitsu’Gateway’Toshiba |
M6 | 19.0V/MAX90W | 5.0*3.0mm | Samsung |
M7 | 19.0V/MAX90W | 5.5*2.1mm | Acer’Compaq’Delta’Hp’Fujitsu’Gateway’Toshiba |
M8 | 19.5V/MAX90W | 6.5*4.4mm | Sony |
M9 | 19.5V/MAX90W | 7.4*5.0mm | Dell |
M10 | 20.0V/MAX90W | 3 holes | Dell |
M11 | 20.0V/MAX90W | 7.9*5.4mm | IBM/LENOVO |
M12 | 18.5V/MAX90W | 7.4*5.0mm | HP/Compaq |
90W electris load capacity.
Automatic voltae management
Continues power supply control

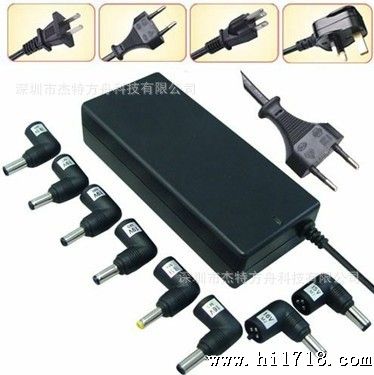

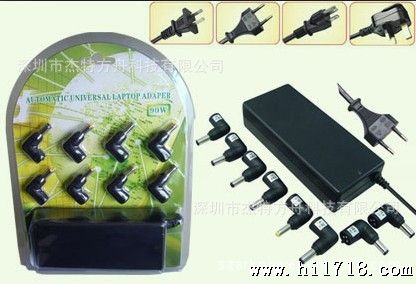

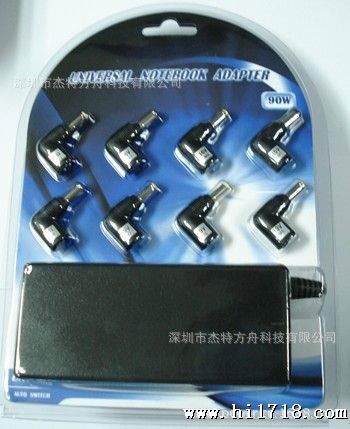

8 connector tips fit for most laptops
