供应直流滤波、储能电容器(图)
价格:电议
地区:安徽 铜陵市
电 话:86 562 13856296403
传 真:86 562 2855972

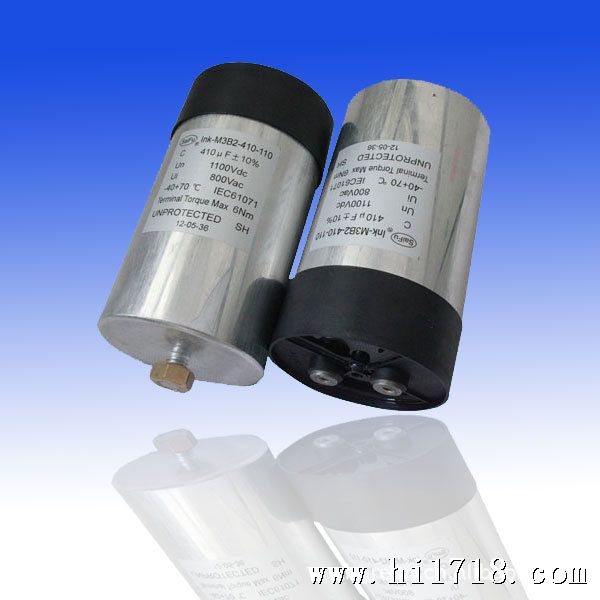

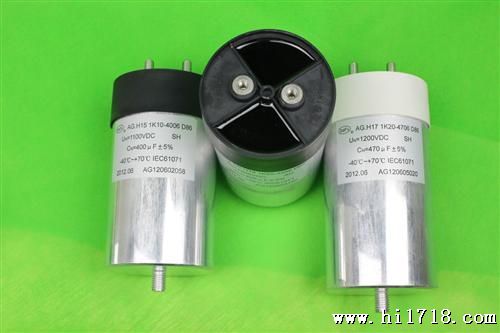

供应直流滤波、储能电容器(图)



技术与性能特性:



Compliance with Standards  标准

IEC 61071、   IEC61881

operating temperatures(Case)运行温度(外壳)



-40°C to +70 °C

storing temperature  存储温度



-40 ... +85°C

ΘHOTSPOT   热点温度

+70°C

Capacitance tolerance     电容器公差

± 5% or ± 10%

tanδ0  损耗

2 x10-3 (100Hz,20°C)

Test voltage terminal to terminal  UTT  端子间测试电压



1.5 URMS for 10 seconds

Test voltage terminal to case UTC  端子与外壳间测试电压



2Un+2000VAC - 50Hz for 60 seconds

Permissible relative humidity  允许的相对湿度

75%Annual average ≤ 95% on 30 days / year, 年平均湿度75%,30天/年

IEC climatic category  IEC气候类别

40 / 85 / 21

Capacitance deviation in the operating temperature range of –25°C to +70 °C  在–25°C to +70 °C温度下工作时允许容量变化值

±1.5% max on capacitance value measured at +20 °C  偏差±1.5%相对于20°C测量值

Case components 外壳成分

Aluminium、plastic、304 stainless steel

铝外壳、塑料外壳、304不锈钢外壳

Terminals  端子

Tinned brass fastons or screws 镀锡铜螺杆

Installation  安装位置

Whatever Position 任意位置

Life Expectancy  预期寿命

≥ 100.000 hours at Un

Failure quota  失效率

50 FIT

Recommended torque for screw connections  推荐的连接扭矩

内螺纹M6-3Nm,M8-6Nm





n 特点

² 应用于直流滤波电路中,可替代电解电容

² 等效串联电阻小,能承受较大的纹波电流

² 自感小

² 有自愈性

² 寿命长

² 铝壳,树酯灌封

n 应用场合

² 风能发电、太阳能发电用或其它工业用变频器

² 直流支撑滤波电路





n 技术参数 Technical Specification



Cn

Rs

Imax

Î

WN

Ls

D x L

Drawing

m

Order No.

(uf)

(mΩ)

(A)

(KA)

(Ws)

(nH)

(mm)

(Kg)

Un 700VDC     Us 1050v     Ur 200V      U t-t 1050 VDC     Ut-c 3000 VAC

370

2.1

40

2.0

86

50

Φ76 x 130

A、B、C、D

0.7

AG.H13 0K70-3706D76

440

1.8

40

2.3

103

50

Φ76 x 145

A、B、C、D

0.8

AG.H14 0K70-4406D76

470

1.7

55

2.5

110

40

Φ86x 130

A、B、C、D

0.9

AG.H13 0K70-4706D86

560

1.4

40

3.0

132

60

Φ76 x 181

A、B、C、D

1.0

AG.H18 0K70-5606D76

590

1.3

55

3.1

137

40

Φ86x 145

A、B、C、D

1.0

AG.H14 0K70-5906D86

730

1.1

55

3.9

171

50

Φ86x 181

A、B、C、D

1.2

AG.H18 0K70-7306D86

1030

1.0

55

5.1

252

70

Φ86x 225

A、B、C、D

1.5

AG.H22 0K70-1037D86
