供应桌面型电源适配器
价格:电议
地区:上海 上海市
电 话:13564379528
手 机:13564379528
传 真:021-54296992

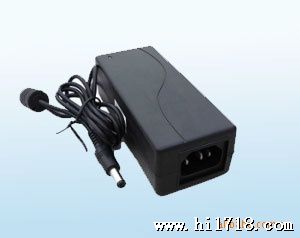

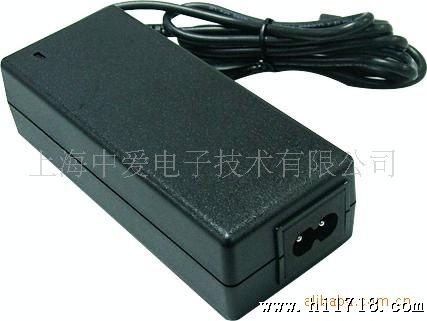

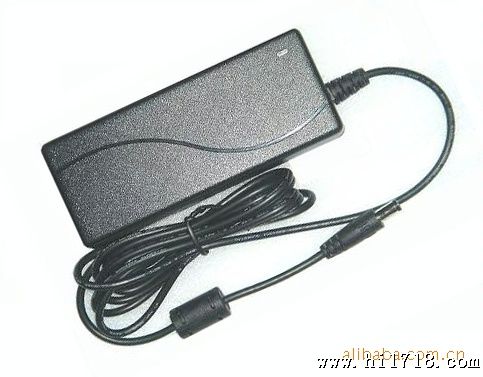

90W Series DSA-90W

Universal Input A dapter Switching Power Supply

Features

*Meet CEC                       *Low Power Consumption

*Class I EMI                      *750ua Leakage

*Class II EMI                     *250ua Leakage

Applications

*Computer         *Communication                  *Consumer

Safety Approvals(60950)

*UL/CUL          *BSMI             *CB         *PSE

*CCC             *SAA/C-Tick(Only Class1,3)        *GS

Safety Approvals(60065)

*UL/CUL          *BSMI             *CB         *CCC

*GS

Output Specifications

c=1/2/3,(1 means C14 AC inlet,2 means C8 AC inlet,3 means C6 AC inlet)

xxx=120—240,(120means output voltage is 12.0V)

yy=2 digit number which represents the output wattage



MODEL

  INPUT Voltage

               OUTPUT

Range

Frequancy

Vdc

Reg.

A(max)

W(max)

DSA-90W-12 cxxxyy

100-240V

50/60Hz1.2A

12-16

±5%

6.67

80

DSA-90W-24 cxxxyy

100-240V

50/60Hz1.2A

19-24

±5%

4.74

90















DSA-90W Characteristics

AC Input Voltage                          Operation Temperature

90 to 264 VAC                                   0 to 40

AC Input Frequancy:                       Storage Temperature

47 to 63 Hz                                     -25 to +60

AC Input Current(Full Load)                MTBF

1.2AMAX                                      50000-100000 by option

                                                  (full load,240V A C,25)

 Leakage Current                           Emissions

Less than 250μA,(264V A C)Class 2                 FCC Class B

Less than 750μA,(264V A C)Class 1                 EN 55022 B,EN55013B

Dielectric Withstand(Hi-pot)

 3000V(1500V)AC,1 min,10m A CLASS2(1)

Hold-up Time(Full Load)                           Immunity

5mS 120V A C                                     61000-4-2,Level 3

20mS 240V A C                                      61000-4-3,Level 2

Over current Protection                          61000-4-4,Level 2

Short Circuit,Auto Restart                              61000-4-5,Level 3

                                                   61000-4-6,Level 2

                                                     61000-4-11
