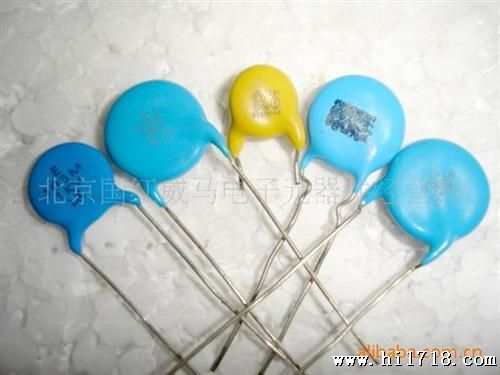

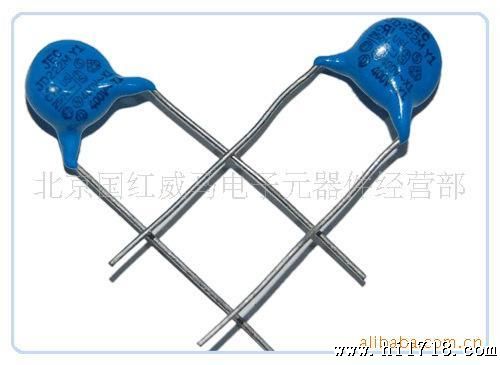

交流安规陶瓷电容 (250VA00VAC/500VAC) 222 472
价格：电议
地区：北京
电 话：86 010 82615810
传 真：86 010 82615810

北京红威马电子有限公司

免费会员 营业执照未上传

>
全部产品 进入商铺

AC.CAPACITORS(Y1:250VAC AND 400VAC)■Applications●For use in ciruit where alternating,pulsating,intermittent and steady high voltager exist.■Specifications

Operating Temp.Rang-25℃ to +85℃
Rated VoltageApplicable StandardsX1Y1
CSA,UL250VAC
SEMKO,SEV,FIMKO,CHINA,KOREA NEMKO,DEMKO,VDE(0565 Teil 1-1)400VAC400VAC
Dielectric Withstanding VoltageRated VoltageTest Voltage
400VAC4000VAC for 1 min
CapacitanceRange10pf to 4700pf、measured at 1KHz ±10%、1.0-5.0Vrms、25℃
Dissipation Factor (D.F)Y5PTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Y5UTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Y5VTANδ≤5.0%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Insulation Resistance10000MΩ at 500VDC for 1 minute.
Temperature CharacteristicsType CodeToleranceCap.ChangeTemp.Range
Y5P±10%+10%、-10% max.-25℃ to +85℃
Y5U±10%、±20%+22%、-56% max.-25℃ to +85℃
Y5V±20%+30%、-80% max.-25℃ to +85℃
The reference temperature: 25℃


  Y1 SERIES■INTRODUCTIONThese Ceramic Disc Capacitors are specifically designed for AC applications and meet the safety requirements of various safety standards agencies.These capacitors are ideal for across the line and line by-pass applications■FEATURES●Ideal for across the line applications ●Compact size ●Cost effective product ●Safety standards recognized for AC applications■Part Number Configuration JD   102   K   Y5P   Y1        ①AC capacitors,safety    ④Type code:Y5P,Y5U,Y5V ①      ②    ③    ④      ⑤         ②Rated capacitance        ⑤Class Y1                                              ③Tolerance on rated capacitance■CAPACITANCE AND DIMENSIONSWhere ordering safety standard recognized ceramic capacitors please use the part numbers as noted above Rated Y1,X1：AC250V AND AC400V      Dielectric strength：4000VAC

PART NUMBERT.C.CAP.TOL.DIMENSION(mm)
D(max)FT(max)
JD10KY5P Y1   To      JD82KY5P Y1±10% (Y5P)10PF    to     82PFK       ±10%7.09.5±0.87.0
JD101KY5P Y1100PF7.09.5±0.87.0
JD151KY5P Y1150PF7.09.5±0.87.0
JD221KY5P Y1220PF8.09.5±0.87.0
JD331KY5P Y1330PF8.09.5±0.87.0
JD471KY5P Y1470PF7.09.5±0.87.0
JD561KY5P Y1560PF8.59.5±0.87.0
JD681KY5P Y1680PF9.59.5±0.87.0
JD102KY5P Y11000PF12.09.5±0.87.0
JD102KY5U Y1+22～-56% (Y5U)1000PFK±10%9.09.5±0.87.0
JD471MY5U Y1470PFM      ±20%7.09.5±0.87.0
JD561MY5U Y1560PF8.09.5±0.87.0
JD681MY5U Y1680PF8.09.5±0.87.0
JD102MY5U Y11000PF8.09.5±0.87.0
JD152MY5U Y11500PF9.09.5±0.87.0
JD222MY5U Y12200PF11.09.5±0.87.0
JD332MY5U Y13300PF13.09.5±0.87.0
JD472MY5U Y14700PF15.09.5±0.87.0
JD102MY5V Y1+30～-80%  (Y5V)1000PFM      ±20%7.09.5±0.87.0
JD152MY5V Y11500PF8.59.5±0.87.0
JD222MY5V Y12200PF9.59.5±0.87.0
JD332MY5V Y13300PF11.09.5±0.87.0
JD392MY5V Y13900PF11.59.5±0.87.0
JD472MY5V Y14700PF13.09.5±0.87.0

Dimensions and Tolerance       TYPE：FS     Cap.Chang Y5U Temperature Characteristics B=3.0mm max for FS D=0.60mm ±0.05mm F=7.5 of 9.5 or 12.5 ±0.8mm L=3～33mm●according as customer,s request and size.■Approved/Recognized Type

Related StandardCertificate NO.Approved Monogram
CSA(Canada)CSA-22.2 E187963
UL(USA)UL1414
VDE(Germany)EN 132 400/IEC 60384-14 (VDE 0565 Teil 1-1)137027
SEMKO(Sweden)EN 132 400/IEC 60384-14312302
SEV(Switzerland)EN 132 400/IEC 60384-1403.1244
FIMKO(Finland)EN 132 400/IEC 60384-14FI 17334 A1
NEMKO(Norway)EN 132 400/IEC 60384-14P
DEMKO(Denmark)EN 132 400/IEC 60384-14136122-01/A-01
VDE CBIEC 60384-14Table II 2nd(1993)DE 1-30022
CQC(China)GB/T14472-1998CQC
EK(Korea)K60384-14SZ03002-6002

 AC.CAPACITORS(Y2：250VAC AND 300VAC)■Applications●For use in ciruit where alternating,pulsating,intermittent and steady high voltager exist.■Specifications

Operating Temp.Rang-25℃ to +85℃
Rated VoltageApplicable StandardsX1Y2
CSA,UL250VAC
SEMKO,SEV,FIMKO,CHINA,KOREA NEMKO,DEMKO,VDE(0565 Teil 1-1)400VAC300VAC
Dielectric Withstanding VoltageRated VoltageTest Voltage
250VAC 300VAC1500VAC for 1 min 2600VAC for 1 min
CapacitanceRange10pf to10000pf、measured at 1KHz ±10%、1.0-5.0Vrms、25℃
Dissipation Factor (D.F)Y5PTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Y5UTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Y5VTANδ≤5.0%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Insulation Resistance10000MΩ at 500VDC for 1 minute.
Temperature CharacteristicsType CodeToleranceCap.ChangeTemp.Range
Y5P±10%+10%、-10% max.-25℃ to +85℃
Y5U±10%、±20%+22%、-56% max.-25℃ to +85℃
Y5V±20%+30%、-80% max.-25℃ to +85℃
The reference temperature: 25℃

 Y2 SERIES■INTRODUCTIONThese Ceramic Disc Capacitors are specifically designed for AC applications and meet the safety requirements of various safety standards agencies.These capacitors are ideal for across the line and line by-pass applications■FEATURES●Ideal for across the line applications ●Compact size ●Cost effective product ●Safety standards recognized for AC applications■Part Number ConfigurationJY   102   K   Y5P   Y2      ①AC capacitors,safety        ④Type code:Y5P,Y5U,Y5V ①     ②    ③    ④    ⑤       ②Rated capacitance           ⑤Class Y2                                        ③Tolerance on rated capacitance■CAPACITANCE AND DIMENSIONSWhere ordering safety standard recognized ceramic capacitors please use the part numbers as noted above
Rated Y2,X1：AC250V AND AC300V      Dielectric strength：1500VAC/2600VAC

PART NUMBERT.C.CAP.TOL.DIMENSION(mm)
D(max)FT(max)
JY10KY5P Y2 To      JY82KY5P Y2±10% (Y5P)10PF    to     82PFK       ±10%6.57.5±0.85.0
JY101KY5P Y2100PF6.57.5±0.85.0
JY151KY5P Y2150PF6.57.5±0.85.0
JY221KY5P Y2220PF6.57.5±0.85.0
JY271KY5P Y2270PF6.57.5±0.85.0
JY331KY5P Y2330PF6.57.5±0.85.0
JY471KY5P Y2470PF7.57.5±0.85.0
JY561KY5P Y2560PF7.57.5±0.85.0
JY681KY5P Y2680PF7.57.5±0.85.0
JY102KY5P Y21000PF8.57.5±0.85.0
JY471KY5U Y2+22～-56% (Y5U)470PFK       ±10%6.57.5±0.85.0
JY561KY5U Y2560PF7.57.5±0.85.0
JY681KY5U Y2680PF7.57.5±0.85.0
JY102MY5U Y21000PFM      ±20%7.57.5±0.85.0
JY222MY5U Y22200PF9.57.5±0.85.0
JY332MY5U Y23300PF11.07.5±0.85.0
JY472MY5U Y24700PF13.07.5±0.85.0
JY102MY5V Y2+30～-80%  (Y5V)1000PFM      ±20%6.57.5±0.85.0
JY152MY5V Y21500PF7.57.5±0.85.0
JY222MY5V Y22200PF7.57.5±0.85.0
JY332MY5V Y23300PF9.07.5±0.85.0
JY392MY5V Y23900PF10.57.5±0.85.0
JY472MY5V Y24700PF10.57.5±0.85.0
JY562MY5V Y25600PF11.57.5±0.85.0
JY682MY5V Y26800PF11.57.5±0.85.0
JY822MY5V Y28200PF12.57.5±0.85.0
JY103MY5V Y210000PF14.59.5±0.85.0

Dimensions and Tolerance       TYPE：FS     Cap.Chang Y5V Temperature Characteristics B=3.0mm max for FS D=0.60mm ±0.05mm F=6.35 of 7.5 or 9.5 ±0.8mm L=3～33mm●according as customer,s request and size.■Approved/Recognized Type

Related StandardCertificate NO.Approved Monogram
CSA(Canada)CSA-22.2 -94LR 111243-1
UL(USA)UL1414E187963
VDE(Germany)EN 132 400/IEC 60384-14 (VDE 0565 Teil 1-1)123326
SEMKO(Sweden)EN 132 400/IEC 60384-14312302
SEV(Switzerland)EN 132 400/IEC 60384-1403.1245
FIMKO(Finland)EN 132 400/IEC 60384-14FI 153165 A1
NEMKO(Norway)EN 132 400/IEC 60384-14P
DEMKO(Denmark)EN 132 400/IEC 60384-14135948-01/A-01
VDE CBIEC 60384-14Table II 2ND(1993)DE 1-07488-A1
CQC(China)GB/T14472-1998CQC
EK(Korea)K60384-14SZ03002-6001

 AC.CAPACITORSApproved/Recognized Type■TYPE：Y1

Related StandardCertificate NO.Approved monogram
VDE  (Germany)EN132400/IEC60384-14 (VDE 0565 Teil 1-1)
VDE  CBIEC 60384-14 Table II 2nd(1993)DE 1-34062

 ■Specifications

Rated VoltageApplicable StandardsRated voltage(Y1)Test Voltage
VDE(0565 Teil 1-1)250V.AC400VAC for 1 min
CapacitanceRange100pf to 4700pf、measured at 1HKz±10%、1.0～5.0Vrms、25℃
Dissipation Factor(D.F)Y5PTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Y5UTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Insulation Resistance（IR）10000MΩ at 500VDC for 1 minute.
Temperature CharacteristicsType CodeToleranceCap.ChangeTemp.Range
Y5P±10%+10%、-10% max.-30℃ to +125℃
Y5U±20%+22%、-56% max.-30℃ to +125℃
The reference temperature: 25℃


 ■Rated Y1：AC250V        Dielectric strength： 4000VAC

PART NUMBERT.C.CAP.TOL.DIMENSION(mm)
D(max)FT(max)
JD101KY5P Y1±10% (Y5P)100PFK ±10%79.5±0.87.0
JD151KY5P Y1150PF79.5±0.87.0
JD221KY5P Y1220PF79.5±0.87.0
JD271KY5P Y1270PF79.5±0.87.0
JD331KY5P Y1330PF89.5±0.87.0
JD471KY5P Y1470PF99.5±0.87.0
JD561KY5P Y1560PF99.5±0.87.0
JD681KY5P Y1680PF109.5±0.87.0
JD102KY5P Y11000PF119.5±0.87.0
JD102MY5U Y1+22～-56% (Y5U)1000PFM ±20%119.5±0.87.0
JD152MY5U Y11500PF149.5±0.87.0
JD222MY5U Y12200PF169.5±0.87.0
JD252MY5U Y12500PF179.5±0.87.0
JD272MY5U Y12700PF179.5±0.87.0
JD332MY5U Y13300PF209.5±0.87.0
JD392MY5U Y13900PF209.5±0.87.0
JD472MY5U Y14700PF229.5±0.87.0

Dimensions and Tolerance                    TYPE：FS    B=3.0mm max for FS D=0.60mm ±0.05mm F=7.5 of 9.5 or 12.5 ±0.8mm L=3～33mm    AC.CAPACITORSApproved/Recognized Type■TYPE：Y2

Related StandardCertificate NO.Approved monogram
VDE  (Germany)EN132400/IEC60384-14 (VDE 0565 Teil 1-1)
VDE  CBIEC 60384-14 Table II 2nd(1993)DE 1-33694

 ■Specifications

Rated VoltageApplicable StandardsRated voltage(Y2)Test Voltage
VDE(0565 Teil 1-1)250VA.C1500VAC for 1 min
CapacitanceRange100pf to 4700pf、measured at 1HKz±10%、1.0～5.0Vrms、25℃
Dissipation Factor(D.F)Y5PTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Y5UTANδ≤2.5%、measured at 1HKz±10%、1.0-5.0Vrms、25℃
Insulation Resistance（IR）10000MΩ at 500VDC for 1 minute.
Temperature CharacteristicsType CodeToleranceCap.ChangeTemp.Range
Y5P±10%+10%、-10% max.-30℃ to +125℃
Y5U±20%+22%、-56% max.-30℃ to +125℃
The reference temperature: 25℃


 ■Rated Y1：AC250V        Dielectric strength： 1500VAC

PART NUMBERT.C.CAP.TOL.DIMENSION(mm)
D(max)FT(max)
JY101KY5P Y2±10% (Y5P)100PFK ±10%77.5±0.86.0
JY151KY5P Y2150PF77.5±0.86.0
JY221KY5P Y2220PF77.5±0.86.0
JY271KY5P Y2270PF77.5±0.86.0
JY331KY5P Y2330PF77.5±0.86.0
JY471KY5P Y2470PF77.5±0.86.0
JY561KY5P Y2560PF87.5±0.86.0
JY681KY5P Y2680PF87.5±0.86.0
JY102KY5P Y21000PF97.5±0.86.0
JY102MY5U Y2+22～-56% (Y5U)1000PFM ±20%10.57.5±0.86.0
JY152MY5U Y21500PF127.5±0.86.0
JY222MY5U Y22200PF147.5±0.86.0
JY252MY5U Y22500PF157.5±0.86.0
JY272MY5U Y22700PF157.5±0.86.0
JY332MY5U Y23300PF277.5±0.86.0
JY392MY5U Y23900PF187.5±0.86.0
JY472MY5U Y24700PF187.5±0.86.0

Dimensions and Tolerance                    TYPE：FS    B=3.0mm max for FS D=0.60mm ±0.05mm F=6.35 of 7.5 or 9.5 ±0.8mm
L=3～33mm

■Marking request the same as follows
     4700PF/250VAC:                        2200PF/400VAC:
