221H
Silicone Gl Cloth Tape
PRODU DISCRIPTION

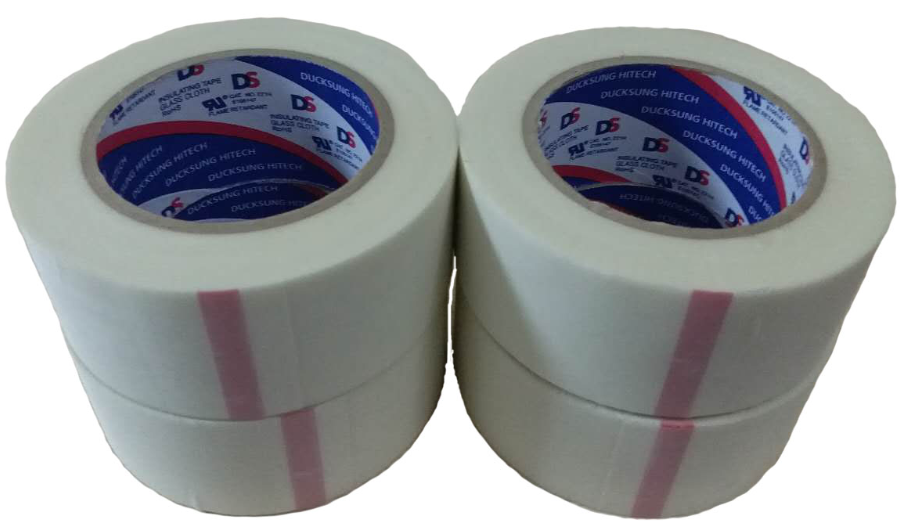

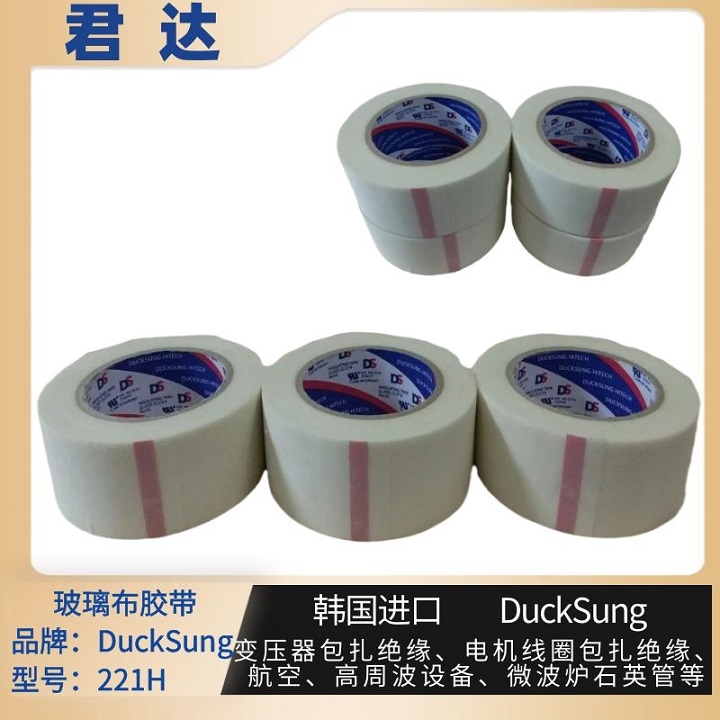

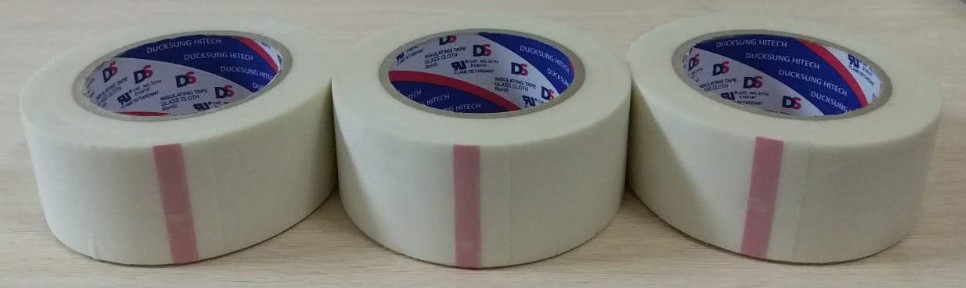

221H is a white gl cloth tape, single coated with a silicone adhesive.
TECHNICAL DATA
Clification
Unit
Tical values
Tolerance
Remarks
Backing thickness
mm
0.14
0.14~0.15
ASTM D3652
Adhesive thickness
mm
0.07
0.065~0.07
ASTM D3652
Total tape thickness
mm
0.21
0.205~0.215
ASTM D3652
Liner description
-
-
-
-
Color
-
White
-
Adhesive to steel
gf/25mm
1300
850~1300
ASTM D3330
Tensile strength
kg/10mm
19
18 over
ASTM D3759
Elongation
%
5
4~6
ASTM D3759
Insulation cl
(a)
H
H
DS-Method
Dieleric breakdown
KV
3.0
2.5 over
ASTM D149
Elerical resistance
Ω
-
-
ASTM D257
UL file No.
E105147
Heat Retardant
UL510
(a) Heat resistance cl: “Y”90℃, “A”105℃, “E”120℃, “B”130℃, “F”155℃, “H”180
