Computar八百万像素变焦镜头、1/1.8 CCD 靶面镜头、3.9-10mm自动光圈镜头、红外镜头、光学镜头、主要应用于机器视觉MV、工业检测ID、工业自动化FA、智能交通ITS、智能安防CCTV等。汇宇科技代理Computar镜头、CBC镜头、康标达800万高清变焦镜头EG3Z3915FCS-MPWIR价格。
深圳市汇宇科技有限公司主要代理:Computar镜头,Computar光学镜头、Computar监控镜头、Computar定焦镜头,Computar变焦镜头,Computar电动变倍镜头,电动三可变镜头,长焦镜头、森林防火镜头、百万像素镜头,300万像素镜头、500万像素镜头、Computar工业镜头,FA工业自动化镜头,Computar红外镜头、Computar八百万像素变焦镜头EG3Z3915FCS-MPWIR等,产品系列全面,价格美丽,详情咨询:、、,我们将竭诚为您服务,谢谢!
名 称:EG3Z3915FCS-MPWIR Computar镜头800万像素3.9-10mm变焦红外镜头
品 质:原装,假一罚百;汇宇科技 代理Computar八百万像素变焦镜头EG3Z3915FCS-MPWIR。
售 后:保修三年,终身保固
描 述:Computar八百万像素变焦镜头、1/1.8 CCD 靶面镜头、3.9-10mm自动光圈镜头、红外镜头、光学镜头、主要应用于机器视觉MV、工业检测ID、工业自动化FA、智能交通ITS、智能安防CCTV等。汇宇科技代理Computar镜头、CBC镜头、康标达800万高清变焦镜头EG3Z3915FCS-MPWIR价格。

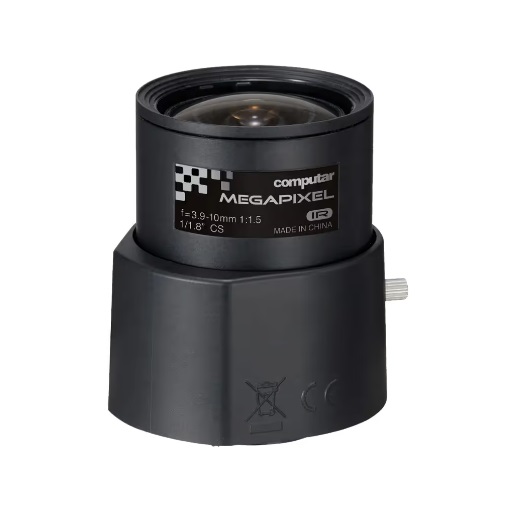

EG3Z3915FCS-MPWIR Computar镜头800万像素3.9-10mm变焦红外镜头
EG3Z3915FCS-MPWIR
FEATURED
"A" Series 8 Megapixel, 1/1.8" 3.9-10mm F1.2 Varifocal, HD Series, DC Auto-iris (CS Mount) Day/Night IR
DESCRIPTION
1/1.8” Format
8 Megapixel
3.9-10mm Varifocal
Full HD Format
DC Auto iris
Precise Focus Adjustment
New Focus Lock System
IR Corrected Optics
Corner Brightness
P-iris model also available
Model No. | EG3Z3915FCS-MPWIR | Effective | Front | φ27.0mm | |||||||
Focal Length | 3.9mm ‐ 10mm | Lens Aperture | Rear | φ9.7mm | |||||||
Max. Aperture Ratio | 1:1.5 | Back Focal | Tele | 7.3mm | |||||||
Max. Image Format | 3.2mm x 5.8mm(φ6.6mm) | Length | Wide | 7.3mm | |||||||
Operation Range | Iris | F1.2 ‐F360C | Flange Back Length | 12.5mm | |||||||
Focus | 0.8m ‐ lnf. | Mount | CS‐Mount | ||||||||
Zoom | 3.9mm ‐ 10mm | Filter Size | - | ||||||||
Control | Iris | DC Auto Iris | Dimensions | φ40 mm× 49 mm× 59 mm | |||||||
Focus | Manual | Weight | 66g | ||||||||
Zoom | Manual | ||||||||||
Angle of View | D | 1/1.8 type | 154.0°‐39.0° | 1/3 type | 133.5°‐35.5° | 1/4 type | 94.1°- 26.6° | ||||
H | 127.6°‐34.3° | 101.3°‐28.4° | 73.7°- 21.3° | ||||||||
V | 65.0°‐ 18.9° | 73.7°‐ 21.3° | 54.4°- 16.0° | ||||||||
Coil | Drive | 190Ω/20℃ | |||||||||
Control | 855Ω/20℃ | ||||||||||
Operating Temperature | -10℃ ‐+50℃ |
Computar
原装,三年保修
