FEATURES
· Plastic package has underwrites laboratory flammability
Classification 94V-0
· Built-in strain relief, ideal for automated placement
· Glass passivated chip junction
· Fast switching for high efficiency
· High temperature soldering
260℃/10 second
MECHANICAL DATA

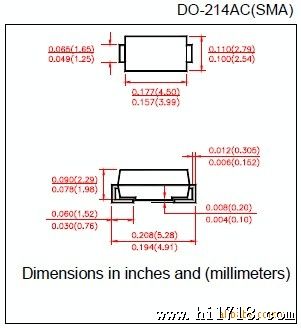

· Case: JEDED DO-214AC molded plastic over
glass passivated chip
· Terminals: Solder plated, solderable per
· MIL-STD-750, method 2026
· Polarity: Color band denotes cathode end
· Weight: 0.002ounce, 0.064 gram
