EI型电源变压器
价格：电议
地区：
电 话：0536-8552230
传 真：0536-8552232
-
图文详情
-
产品属性
-
相关推荐
方形变压器是设计简便， 经济， 质量稳定的变压器， 被广泛应用于各类电器中， 用户可根据自己的要求定制， 周期短， 无需开模。 欢迎广大客商前来定制。
Bobbin Type骨架类型G01 “工”字型
Bobbin Type骨架类型G02 “王”字型
Bobbin Type骨架类型G03
”抽屉“型
UL ：E228087
EI TYPE POWER TRANSFORMER – 710 Series Power Transformer

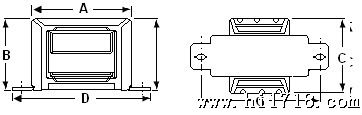

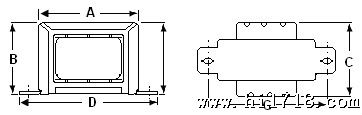

CORE SIZE 矽钢片型号 | Dimensions 骨架窗口尺寸 | Power（VA） 功率（瓦） | Bobbin 骨架类型 | Overall Dimensions（mm）外形尺寸（毫米） | ||||
A | B | C | D | G | ||||
EI-28 | 8 x 12 | 0.80 | G01/G02/G03 | 29.2 | 27.2 | 29.5 | 50.0 | 45.0 |
8 x 15 | 0.90 | G01/G02 | 29.20 | 27.2 | 34.0 | 50.0 | 45.0 | |
8 x 18 | 1.00 | G01/G02 | 29.20 | 27.2 | 37.0 | 50.0 | 45.0 | |
EI-35
| 10 x 10 | 0.95 | G01/G02/G03 | 37.0 | 30.50 | 29.0 | 55.0 | 47.0 |
10 x 11 | 1.00 | G02 | 37.0 | 30.50 | 31.0 | 55.0 | 47.0 | |
10 x 13 | 1.40 | G02/G03 | 37.0 | 30.50 | 31.0 | 55.0 | 47.0 | |
10 x 15 | 2.00 | G01/G02/G03 | 37.0 | 30.50 | 32.0 | 55.0 | 47.0 | |
10 x 18 | 2.80 | G01/G02/G03 | 37.0 | 30.50 | 36.0 | 55.0 | 47.0 | |
10 x 20 | 3.40 | G03 | 37.0 | 30.50 | 37.0 | 55.0 | 47.0 | |
10 x 26.5 | 6.20 | G02 | 37.0 | 30.50 | 42.5 | 55.0 | 47.0 | |
EI-41 | 13 x 11 | 1.50 | G03 | 43.2 | 35.0 | 31.0 | 66.0 | 56.0 |
13 x 13 | 2.50 | G03 | 43.2 | 35.0 | 36.5 | 66.0 | 56.0 | |
13 x 14 | 2.80 | G03 | 43.2 | 35.0 | 36.5 | 66.0 | 56.0 | |
13 x 15 | 3.20 | G01/G02/G03 | 43.2 | 35.0 | 36.5 | 66.0 | 56.0 | |
13 x 17 | 5.20 | G01/G02/G03 | 43.2 | 35.0 | 36.5 | 66.0 | 56.0 | |
13 x 19 | 5.60 | G03 | 43.2 | 35.0 | 41.0 | 66.0 | 56.0 | |
13 x 20 | 7.00 | G01/G02/G03 | 43.2 | 35.0 | 42.0 | 66.0 | 56.0 | |
13 x 25 | 9.50 | G01/G03 | 43.2 | 35.0 | 44.50 | 66.0 | 56.0 | |
13 x 27 | 10.50 | G03 | 43.2 | 35.0 | 47.0 | 66.0 | 56.0 | |
EI-48 | 16 x 7 | 1.00 | G02 | 50.5 | 42.5 | 18.5 | 73.0 | 62.50 |
16 x 16 | 6.50 | G02 | 50.5 | 42.5 | 35.0 | 73.0 | 62.50 | |
EI-48 | 16 x 18 | 6.80 | G01/G03 | 50.5 | 42.5 | 40.0 | 73.0 | 62.50 |
16 x 20 | 9.50 | G01/G02/G03 | 50.5 | 42.5 | 41.0 | 73.0 | 62.50 | |
16 x 22 | 11.50 | G03 | 50.5 | 42.5 | 45.5 | 73.0 | 62.50 | |
16 x 24 | 12.50 | G01/G02/G03 | 50.5 | 42.5 | 46.0 | 73.0 | 62.50 | |
16 x 26 | 15.00 | G03 | 50.5 | 42.5 | 51.5 | 73.0 | 62.50 | |
16 x 28 | 18.00 | G02 | 50.5 | 42.5 | 47.0 | 73.0 | 62.50 | |
16 x 30 | 19.00 | G01/G02/G03 | 50.5 | 42.5 | 52.0 | 73.0 | 62.50 | |
16 x 35 | 25.00 | G01/G03 | 50.5 | 42.5 | 59.50 | 73.0 | 62.50 | |
16 x 40 | 30.00 | G03 | 50.5 | 42.5 | 65.0 | 73.0 | 62.50 | |
EI-57 | 19 x 20 | 11.50 | G01/G02/G03 | 59.50 | 51.50 | 44.0 | 84.0 | 74.0 |
19 x 25 | 19.00 | G01/G02/G03 | 59.50 | 51.50 | 46.0 | 84.0 | 74.0 | |
19 x 28 | 24.00 | G01/G02/G03 | 59.50 | 51.50 | 52.0 | 84.0 | 74.0 | |
19 x 30 | 28.00 | G01/G02/G03 | 59.50 | 51.50 | 54.0 | 84.0 | 74.0 | |
19 x 35 | 38.00 | G03 | 59.50 | 51.50 | 60.0 | 84.0 | 74.0 | |
19 x 38 | 43.00 | G02/G03 | 59.50 | 51.50 | 63.0 | 84.0 | 74.0 | |
19 x 40 | 45.00 | G03 | 59.50 | 51.50 | 66.0 | 84.0 | 74.0 | |
EI-66 | 22 x 10 | 4.00 | G02 | 68.0 | 58.0 | 18.0 | 93.0 | 80.0 |
22 x 13.5 | 7.20 | G02 | 68.0 | 58.0 | 34.0 | 93.0 | 80.0 | |
22 x 18 | 12.50 | G01 | 68.0 | 58.0 | 44.0 | 93.0 | 80.0 | |
22 x 23 | 21.00 | G02 | 68.0 | 58.0 | 46.0 | 93.0 | 80.0 | |
22 x 25 | 26.00 | G01/G03 | 68.0 | 58.0 | 52.0 | 93.0 | 80.0 | |
22 x 28 | 35.00 | G01/G02/G03 | 68.0 | 58.0 | 57.0 | 93.0 | 80.0 | |
22 x 30 | 41.00 | G02/G03 | 68.0 | 58.0 | 57.0 | 93.0 | 80.0 | |
22 x 32 | 49.00 | G03 | 68.0 | 58.0 | 57.0 | 93.0 | 80.0 | |
22 x 33 | 51.00 | G01/G02/G03 | 68.0 | 58.0 | 64.0 | 93.0 | 80.0 | |
22 x 35 | 55.00 | G01/G02/G03 | 68.0 | 58.0 | 64.0 | 93.0 | 80.0 | |
22 x 37 | 58.00 | G03 | 68.0 | 58.0 | 64.0 | 93.0 | 80.0 | |
22 x 38 | 60.00 | G01/G02/G03 | 68.0 | 58.0 | 69.0 | 93.0 | 80.0 | |
22 x 40 | 65.00 | G02/G03 | 68.0 | 58.0 | 69.0 | 93.0 | 80.0 | |
22 x 44 | 72.00 | G01/G02/G03 | 68.0 | 58.0 | 75.5 | 93.0 | 80.0 | |
EI-76.2
| 25.4 x 26 | 42.00 | G01/G02 | 76.0 | 65.5 | 55.0 | 106.0 | 90.0 |
25.4 x 32 | 60.00 | G01/G02 | 76.0 | 65.5 | 65.0 | 106.0 | 90.0 | |
25.4 x 40 | 95.00 | G01/G03 | 76.0 | 65.5 | 75.0 | 106.0 | 90.0 | |
25.4 x 42 | 105.00 | G03 | 76.0 | 65.5 | 69.0 | 106.0 | 90.0 | |
25.4 x 45 | 115.00 | G01/G03 | 76.0 | 65.5 | 75.0 | 106.0 | 90.0 | |
25.4 x 56.5 | 176.00 | G03 | 76.0 | 65.5 | 82.0 | 106.0 | 90.0 | |
EI-86 | 28.6 x 36 | 100.00 | G03 | 86.0 | 72.5 | 65.0 | 114.0 | 100.0 |
28.6 x 42 | 135.00 | G02 | 86.0 | 72.5 | 76.5 | 114.0 | 100.0 | |
28.6 x 45 | 150.00 | G01/G02/G03 | 86.0 | 72.5 | 75.0 | 114.0 | 100.0 | |
28.6 x 50 | 165.00 | G01/G02/G03 | 86.0 | 72.5 | 79.0 | 114.0 | 100.0 | |
28.6x 55 | 210.00 | G01/G03 | 86.0 | 72.5 | 94.0 | 114.0 | 100.0 | |
EI-96 | 32 x 33 | 95.00 | G01/G02 | 96.0 | 82.0 | 69.0 | 124.0 | 110.0 |
32 x 40 | 135.00 | G01/G02 | 96.0 | 82.0 | 76.0 | 124.0 | 110.0 | |
32 x 45 | 170.00 | G01/G02 | 96.0 | 82.0 | 81.0 | 124.0 | 110.0 | |
32 x 50 | 210.00 | G01/G02/G03 | 96.0 | 82.0 | 87.0 | 124.0 | 110.0 | |
32 x 55 | 250.00 | G03 | 96.0 | 82.0 | 87.5 | 124.0 | 110.0 | |
32 x 60 | 275.00 | G01/G02 | 96.0 | 82.0 | 95.0 | 124.0 | 110.0 | |
EI-114
| 39 x 50 | 285.00 | G01/G02 | 114.0 | 97.0 | 95.0 | 144.0 | 130.0 |
39 x 60 | 400.00 | G01/G02 | 114.0 | 97.0 | 105.0 | 144.0 | 130.0 | |
39 x 70.5 | 550.00 | G01/G02 | 114.0 | 97.0 | 115.0 | 144.0 | 130.0 | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
