产品名称：LEDSMD超高亮度5050三晶红光贴片灯珠

工作电流：3*20MA;

功率：0.2W /PCS;

波段：620-630 2NM/BIN;

电压:1.8-2.3V;

光通量：450-1050MCD/PCS;

LED贴片寿命：》5万小时;

应用产品：软光条，汽车照明等独特的制造工艺，保证回流焊过程中灯珠不出现死灯，避免返工的麻烦。

Quick Details:

Place of origin:ShenZhen China(mainland)   Brand name:MJ      Model Number:MJ-S5050CR-02

Color:Red      Input Voltage:1.9-2.3V        Life:50,000h    Max.Forward current:20MA*3

Max.Forward Voltage: 1.9-2.3v, 0.2v/bin

Max.Reverse Voltage:5V   Warranty:3years Certification:CE/ROHS

Packaging & Delivery:

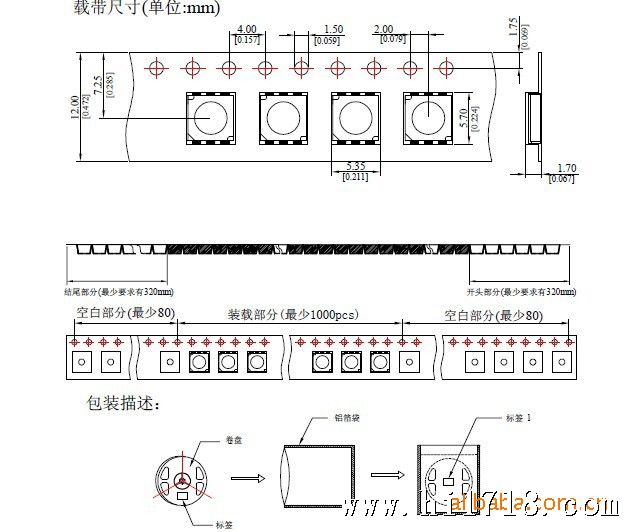

Packaging detail:1000pcs/bag

Delivery Detail:2-3 work days for sample, 5-10 work days for bulk order.

Specifications:

 power in band smd5050 red lamp

1.Available in all color;

2.Power:0.15W;

3.Samples are free(20pcs);

4.1000pcs/reel.

LED SMD5050 red lamp Specification:

Shape:smd5050 red lamp

light source:Epistar chip

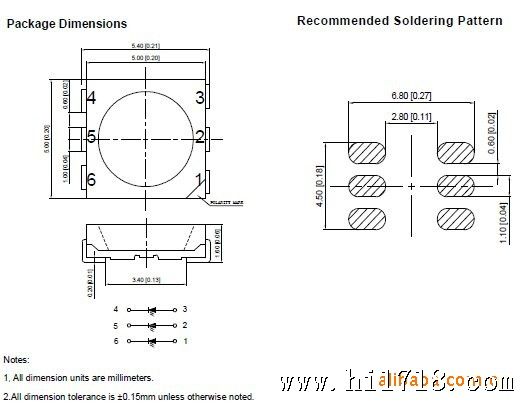

size:5.0*5.0mm

color:620-630nm(2.5nm/bin,0.2v/bin), can booking(600-660nm)wavelengths

Viewing Angle:120deg

If:20MA*3

Suitable for LED strip/modules/traffic lights product

Features:

longer operating life(up to 1000,000hours)

low voltage DC Operated,Cool beam,safe to touch,instant light less than 20-50ns,no UV and IR radiation.

very energy efficient than the incandescent and halogen lamps.

The product itself will remain within ROHS/CE compliant.

Applications:

lights:indoor/outdoor commercial and residential architectural,such as:flexible led strip/tape lights,rigid bar,modules.traffic lights,;panel back lights,etc.
