1 Features

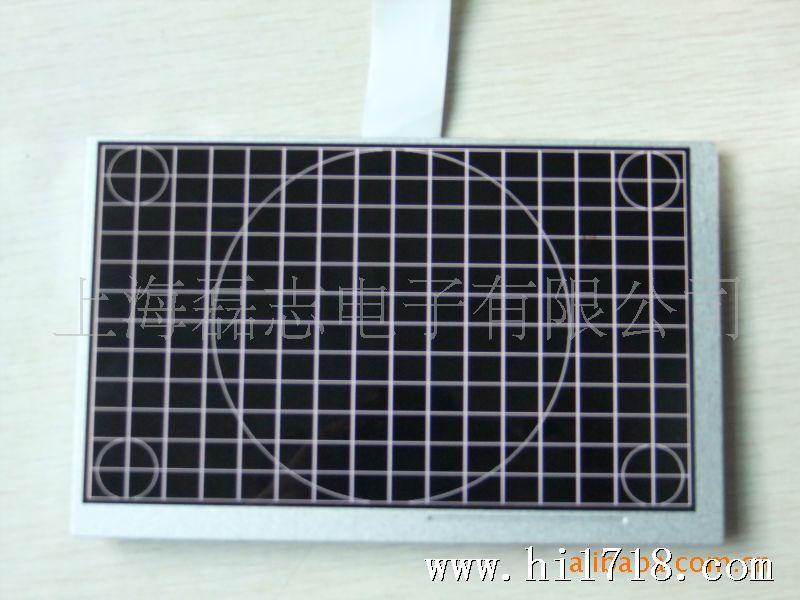

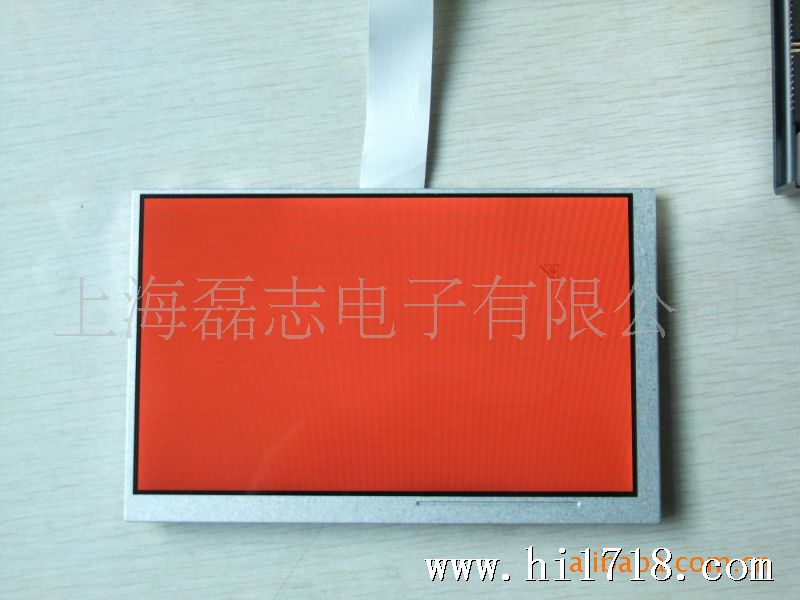

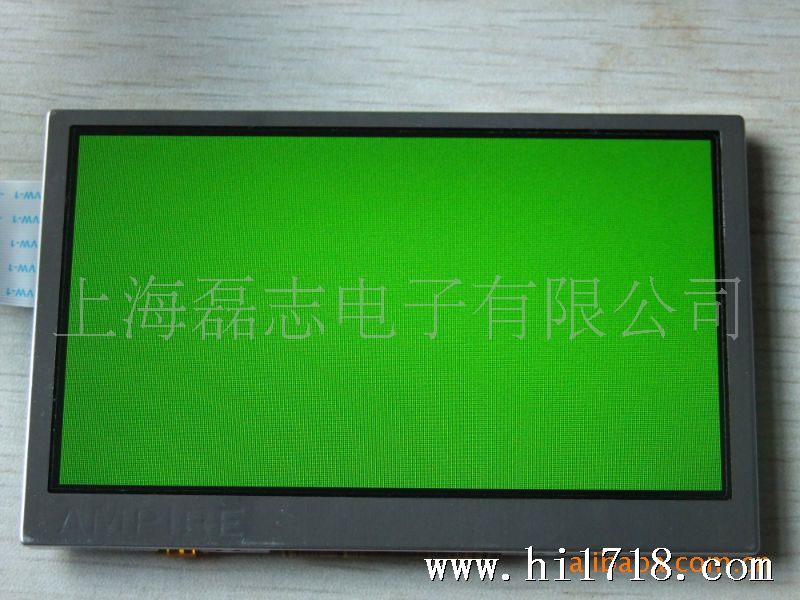

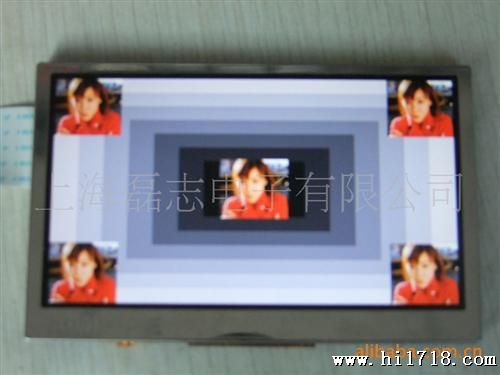

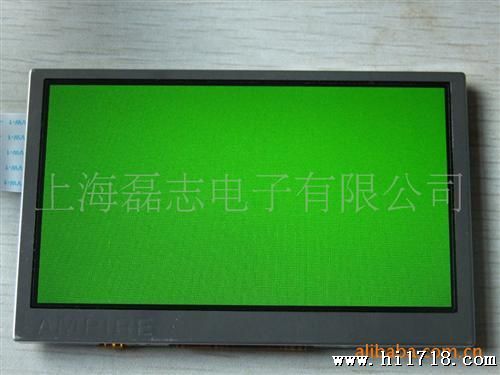

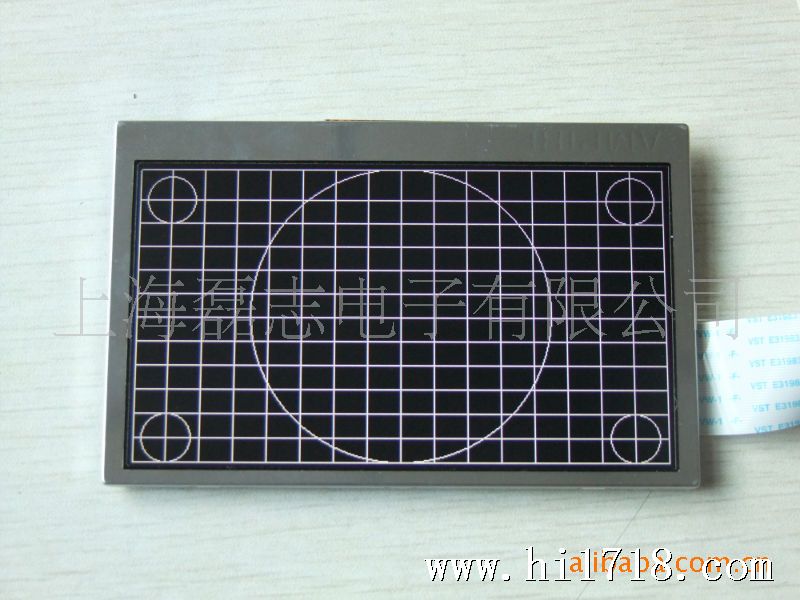

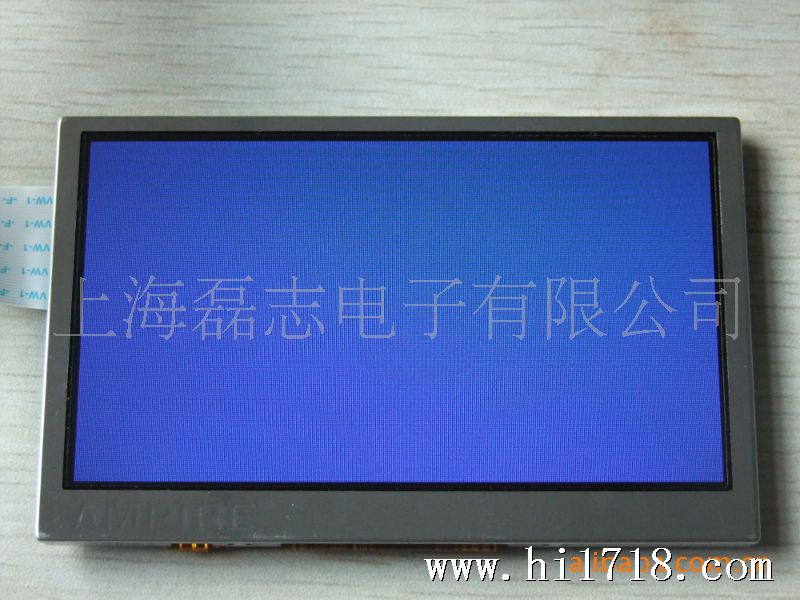

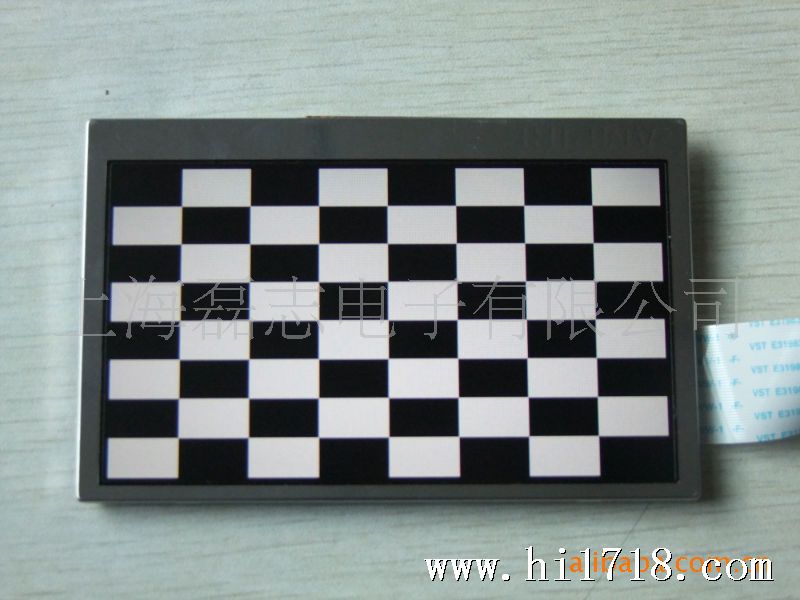

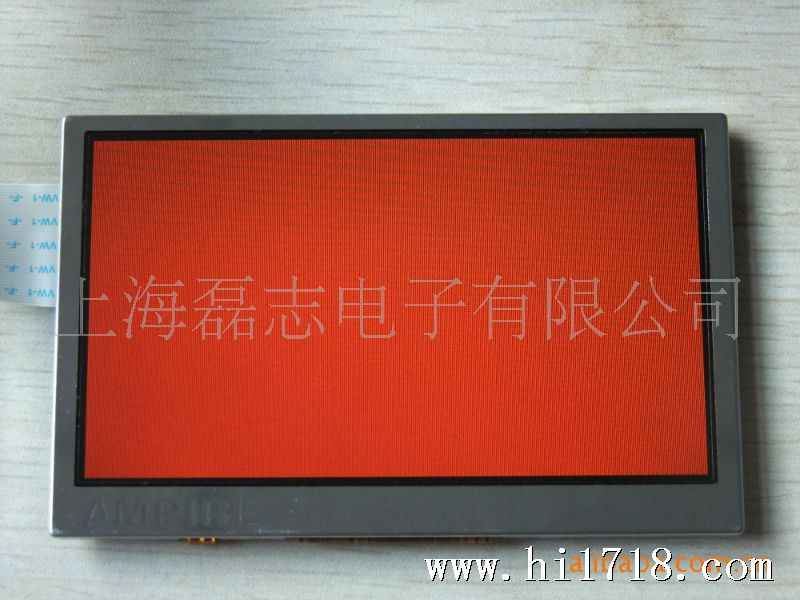

4.3 inch Amorphous-TFT-LCD (Thin Film Tr
ansistor Liquid Crystal Display) module.
This module is composed of a
4.3¡± TFT-LCD panel, LCD contro
ller, power driver circuit,
and backlight unit.
1.1 TFT Panel Feature :
(1) Construction: 4.3¡± a-Si color TFT-
LCD, White LED Backlight and PCB.
(2) Resolution (pixel): 480(R.G.B) X 272
(3) Number of the Colors : 262K colo
rs ( R , G , B 6 bit digital each)
(4) LCD type : Transmissive Color TFT LCD ( normally White)
(5) Interface: 40 pin pitch 0.5
(6) Power Supply Voltage: 3.3V single pow
er input. Built-in power supply circuit.
(7) Viewing Direction: 6 O¡¯clock ( The di
rection it¡¯s hard to be discolored ):
1.2 LCD Controller Feature:
(1) MCU interface 8/9/16/18 bit 80&68 series MCU interface.
(2) Display RAM size : 64
0x320x3x6 bits.
Ex : 320x240 two frame buffer with
262K colors.
(3) Arbitrary display memory
 start position selection.
(4) MCU interface : 8 bit / 9 bit / 16bit / 18 bits  80/68 MPU interface.
(5)  8 bit / 16 bit interface support 65K
( R5G6B5) /262K(R6G6B6) colors data
format.
(6) 9 bit / 18 bit interface support 262K
(R6G6B6) colors data format only.

2 Physical specifications
Item Specifications Unit
Display resolution(dot)
480(R.G.B.) (W) x 272(H) mm
Active area
95.04 (W) x 53.856 (H) mm
Screen size
4.3 (Diagonal) mm
Pixel size
0.198 (W) x 0.198 (H) um
Color configuration R.G.B stripe
Overall dimension 105.5(W)
 x 67.2(H) x 5.71(D) mm
Weight T.B.D mg
Backlight unit LED
