Applications
        Sanitary applications
        Food and beverage industry
        Pharmaceutical industry, production of active ingredients
        Biotechnology and Life-Science-Engineering
     Special features
        Compact design for space-saving fitting
        Materials and surface finish quality in accordance with standards of hygienic designs
        Ingress protection IP 69K

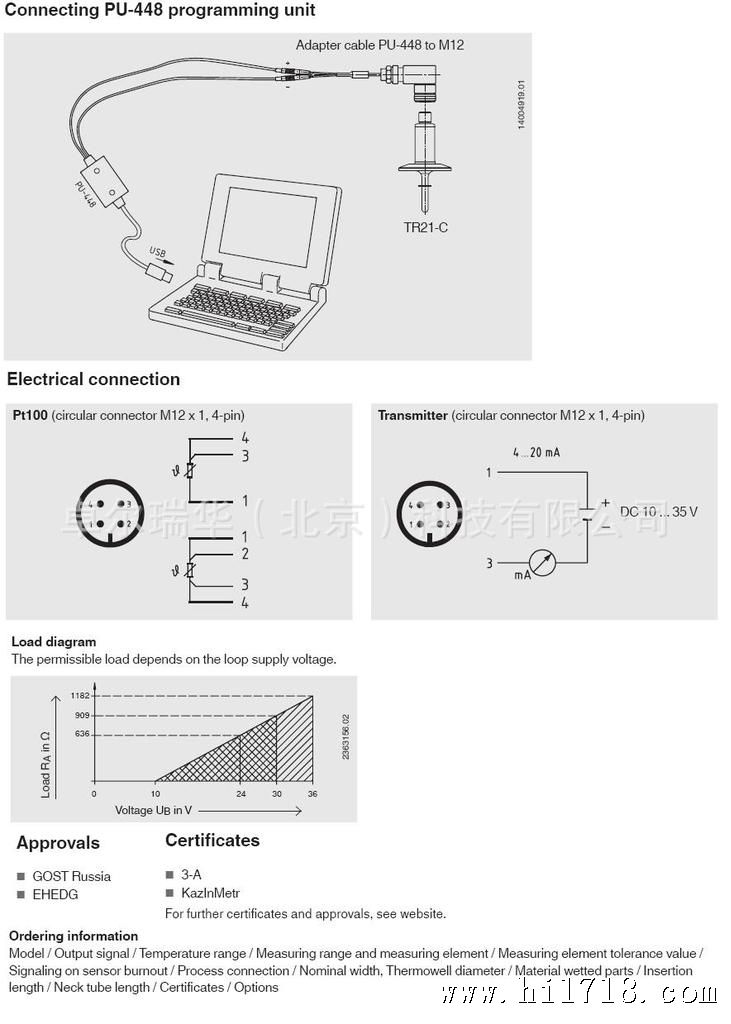

        Simple and fast connection using an M12 plug connector

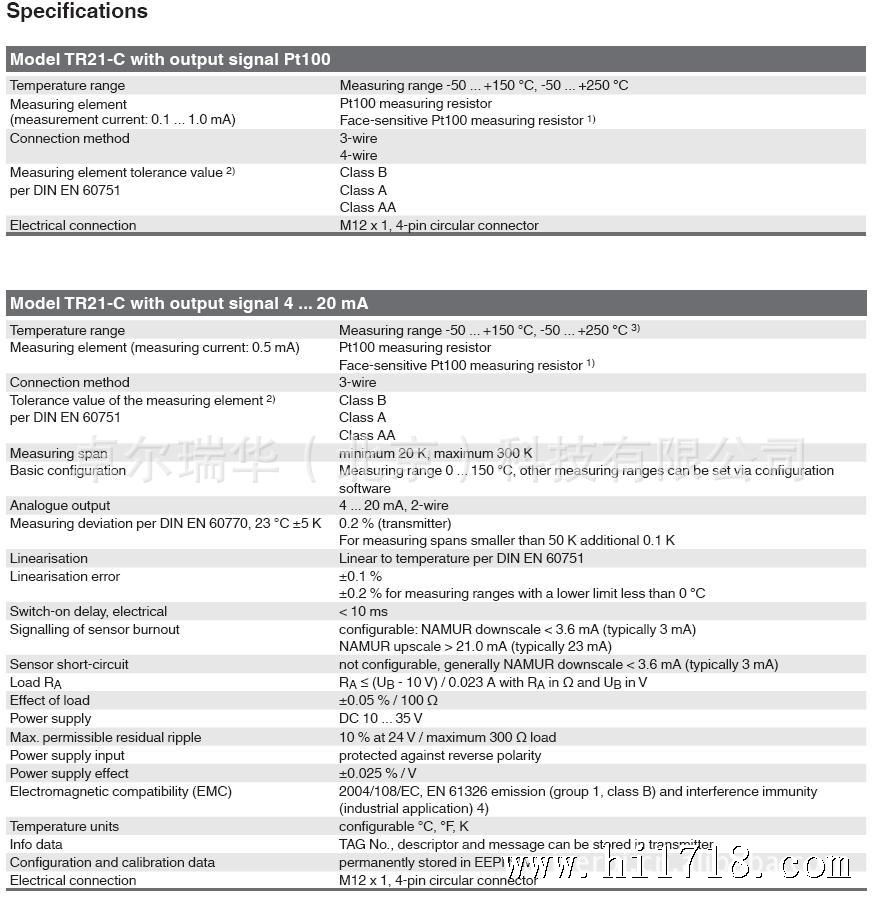

        Output signal: Pt100 or 4 … 20 mA via PC-programmable transmitter

     Description

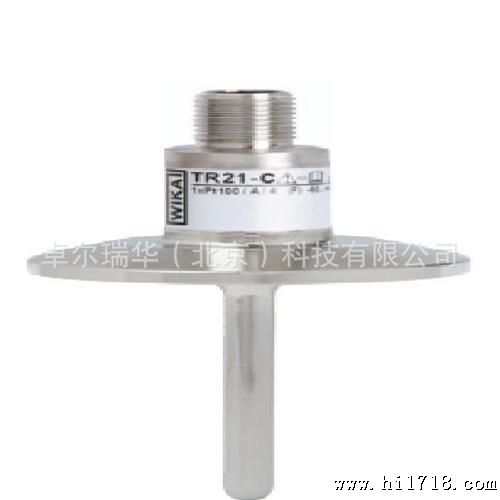

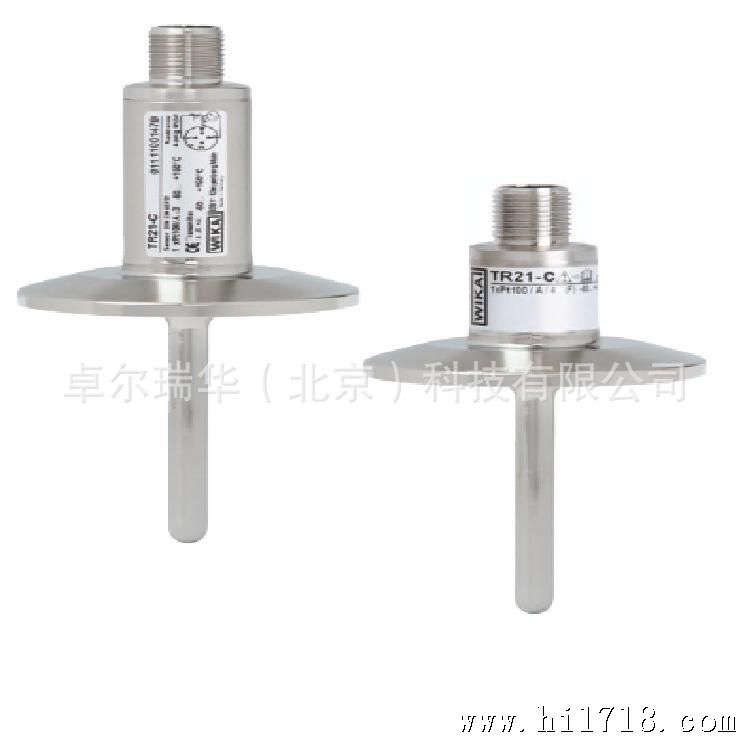

        The model TR21-C resistance thermometer is used for temperature measurement in sanitary applications. This thermometer is fitted with process connections that meet the stringent requirements, in terms of materials and design, of hygienic measuring points. The TR21-C is suited, due to its high IP protection (IP 69K), for wash-down applications ("Splash Area") and for systems that require external cleaning.
        Through the compact design, this resistance thermometer is designed specifically for operation in applications with limited mounting space.

        For applications that exceed temperatures of 150 °C, the measuring range can be increased to 250 °C by using a neck tube.
        The TR21-C can be used flexibly and is suitable for installation in plant and systems for operation in batch processes.
