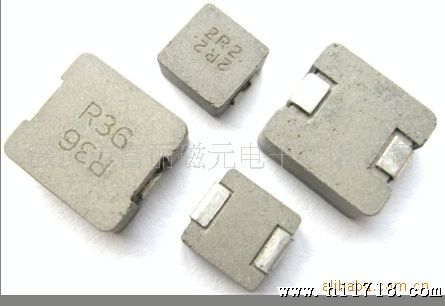

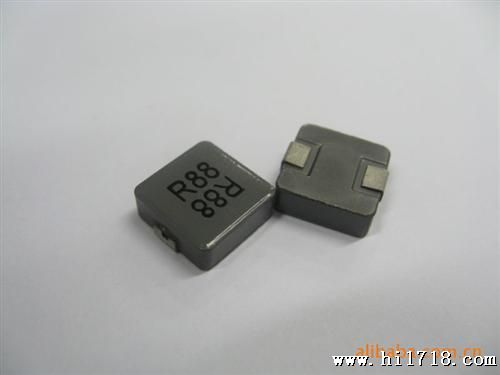

台庆電感 TMPC0402 一体成型電感 贴片电感
价格：电议
地区：广东 深圳市
电 话：86 0755 82706368
传 真：86 0755 82706689

深圳市富丽磁元电子有限公司

免费会员 营业执照未上传

>
全部产品 进入商铺


1. Features

1. Magnetic metal powder inductor.

2. Compact design.

3. High current，low DCR，high efficiency.

4. Very low acoustic noise and very low leakage flux noise.

5. High reliability.

6. 100% Lead(Pb)-Free and RoHS compliant.

2.Applications

Note PC power system，incl. IMVP-6

DC/DC converter .





Series

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

TMPC0402H

4.45±0.25

4.06±0.25

1.8±0.2

0.76±0.30

1.5±0.20

0~-1.2

面性

Note:側邊可Coating0~-1.2mm.



3.Part Numbering

TMPC

0402

H

-

R22

M

-Z01

A

B

C



D

E



    F

A: Series

B: Dimension                         AxC

C: Type                  Magnetic metal powder

D: Inductance          R22=0.22uH

E: Inductance Tolerance          M=±20%

F:Control S/N             塗裝灰色系列(正面塗裝)；印字:噴碼或移印.顏色:黑色,雙向印字



 5.Specification

Part Number

Inductance

L0 (uH)±20%@0 A

I rms (A)

Typ.

I sat (A)

Typ.

DCR(mΩ)

Typ.@25℃

DCR(mΩ)

Max.@25℃

TMPC0402H-R10M-Z01

0.10

12

35

3.2

4.0

TMPC0402H-R22M-Z01

0.22

13

24

6.6

7.3

TMPC0402H-R33M-Z01

0.33

10

18

7.8

8.6

TMPC0402H-R47M-Z01

0.47

8.0

12

11.2

14

TMPC0402H-1R0M-Z01

1.00

5.0

8.5

22

27

TMPC0402H-1R5M-Z01

1.50

4.5

7.0

34.8

42

TMPC0402H-2R2M-Z01

2.20

4.0

6.0

51

61

TMPC0402H-3R3M-Z01

3.30

3.5

4.0

69

76

TMPC0402H-4R7M-Z01

4.70

2.6

3.5

95

105

Note:

  1. Test frequency :L:100KHz /V;
  2. All test data referenced to 25℃
  3. Heat Rated Current (Irms) will cause the coil temperature rise approximatelyΔ
  4. Saturation Current (Isat) will cause L0  to drop≦20%(keep quickly).

thickness,airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application.

         7.Special inquiries besides the above common used types can be met on your requirement.





TMPC

0402

Chip / Reel

2000

Inner box

4000

Carton

16000
