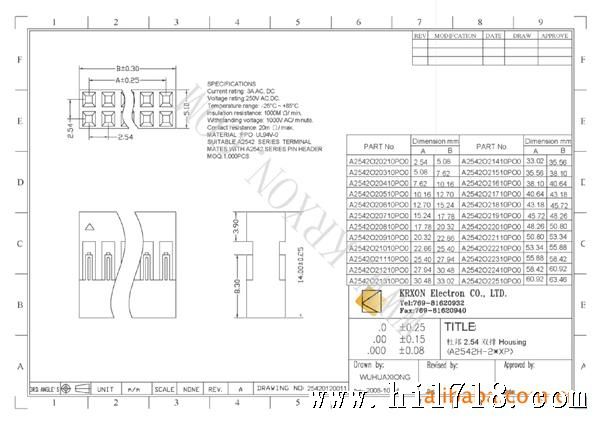

A2542(Dupont 2.54mm/杜邦2.54mm)
Pitch:2.54mm(1.00″)
Poles:2~22,2*2~2*25
详细资料及图纸请登入以下链接地址:(将链接复制到地址栏中,如打不开请刷新)

https://www.krxon.com/Data%20sheet/A2542(Dupont%202.54%20series).pdf

SPECIFICATIONS

Website:www.krxon.com
Current rating: 3A AC, DC
Voltage rating:250V AC,DC.
Temperature range: -25°C ~ +85°C
Insulation resistance: 1000M Ω/ min.
Withstanding voltage: 1000V AC/ minute.
Contact resistance: 20m Ω/ max.
MATERIAL :PPO UL94V-0
SUITABLE A2542 SERIES TERMINAL

KRXON Electronic Co.,Ltd
MATES WITH A2542 SERIES PIN HEADER
MOQ:1,000PCS
