产品详情大图

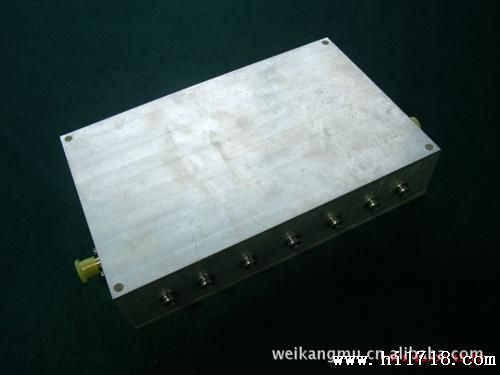

700MHz带通滤波器
价格：电议
地区：陕西 西安市
电 话：86 029 88787661
传 真：86 029 88787662

陕西微康姆通信技术有限公司

免费会员 营业执照未上传

>
全部产品 进入商铺

750MHz Filter



Features & Benefits:



>> Hi-Q Cavity Design

>> High Attenuation & Low Insertion



Specifications:



Model Number

SVT-FIL-7/72

FrequencyRanges

737-809 MHz

Center frequency

773MHz

In Band Insertion Loss

1.5 dB maximum

In Band Ripple

0.6 dB maximum p.p.

Return Loss

18 dB minimum

Power Handling

5 Watts

Connectors

IN/OUT:SMA-female

Impedance

50 Ohm

Operating Temperature

-10 to +50oC / 14 to +122oF

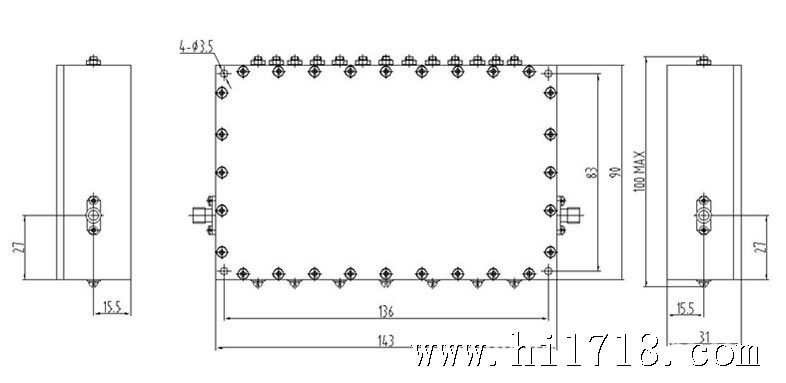

Mechanical outline

143mm×90mm×30mm
