LED灯条灯带电源，LED水电源，150W
价格：电议
地区：广东 深圳市
电 话：86 0755 33131918
手 机：13902968158
传 真：86 0755 28546116
-
图文详情
-
产品属性
-
相关推荐
| 开关电源参数 Switching Power Supply 200W | |||
| 产品描述Product Description: | |||
| 价格合理,质量可靠,效率高,工作温度低,体积小,重量轻,105度输出电容器,软启动电流,有效降低AC输入冲击,100%满负荷烧机测试,适用AC输入电源,有短路保护,过载保护,内装EMI滤波器,纹波极小!性价比高.reasonable prices, reliable quality, high efficiency, low temperature, small volume, light weight, 105 degrees output capacitors, soft start current, AC input impact effectively reduce the 100% full load burn-in testing, global application of AC input power with short circuit protection, overload protection, built-in EMI filter, the ripple minimum! cost-effective. | |||
| 技术参数Specification | 型 号 | ||

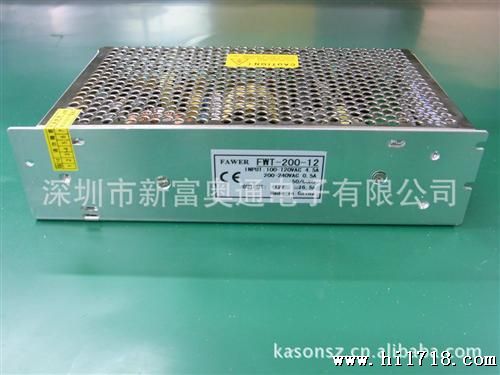

| FWT-200-12 | FWT-200-24 | ||
| 直流输出电压DC output voltage | 12V | 24V | |
| 输出电压容差Output voltage range | ±1% | ±1% | |
| 额定输出电流Rated output current | 16.5A | 8.3A | |
| 输出电流范围Output current range | 0～16.5A | 0～8.3A | |
| 纹波及噪音Wave and noise | 150mVp-p | 150mVp-p | |
| 进线稳定度Inlet stability | ±0.3% | ±0.2% | |
| 负载稳定度Load stability | ±0.3% | ±0.2% | |
| 直流输出功率DC output power | 198W | 199.2W | |
| 效率Efficiency | 82% | 85% | |
| 直流电压可调范围Adjustable range for DC voltage | ±10% | ±10% | |
| 输入电压范围AC input voltage range | 100-130VAC or 170-250VAC 47-63Hz； | ||
| 输入电流Input current | 4.5A/115V 2.5A/230V | ||
| 冲击电流AC Inrush current | 25A/115A 50A/230A | ||
| 漏电流Leakage current | ＜3.5mA/240VAC | ||
| 过载保护Overload protection | 105%～135% 类型：切断输出Type：pulsing hiccup shutdown 复位：自动恢复Reset:Auto restore | ||
| 启动、上升、保持时间Setup,rise,hold up time | 200ms,100ms,20ms | ||
| 耐压性Dielectric strength test | 输入输出间：1.5KvAC输入与外壳；1.5KvAC输出与外壳；0.5KvAC；Between input and output: 1.5KvAC input and shell;1.5KvAC output and shell; 0.5KvAC | ||
| 工作温度、温度Working temperature and humidity | -10℃～+50℃,20%～90%RH | ||
| 存储温度、温度Srore temperature and humidity | -20℃～+85℃,10%～95%RH | ||
| 外形尺寸Overall dimension | 200×98×38mm | ||
| 重量Weight | 0.64Kg | ||
| 安全标准Safety standards | EN61347 | ||
| EMC标准EMC standards | EN55015,EN61000,EN61547 | ||
