出口型（IR型）.（SEMIKRON型）,俄罗斯型。

100A   150A

400V~1800V

金属螺柱结构；

承受高浪涌电流；

JB/T8949.2-1999标准

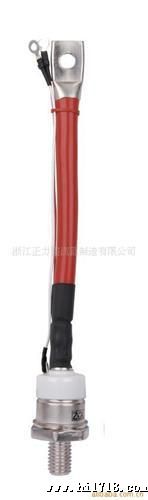

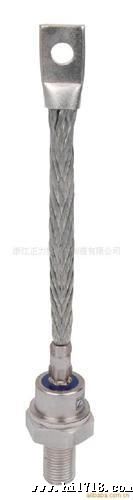

International Rectifier(IR) type and Semikron type, stud version rectifier diode, 200A~300A, 200V~1800V. DO-9 case, also could make fast recovery type, and Schottky type diode.

Features:

High surge current capability
Stud cathode and stud anode version
Wide current range
Metric device version available

Typical Applications:

Battery charges
Converters
Power supplies
Machine tool controls
Welder Motor controls

Type        IF(AV)   VFM/IFM  IF(RMS)  VRRM   IRRM   Rjc        Tj       Mounting   Outline
                A          V   A         A            V         mA    C'/W       C'           N/m
100U(R)    100      1.25   300    160   200~1800   ≤20   0.2  -40~+125     12.0         DO-8/DO-30
150U(R)    150      1.30  450     240   200~1800   ≤20  0.15  -40~+125     12.0         DO-8/DO-30
