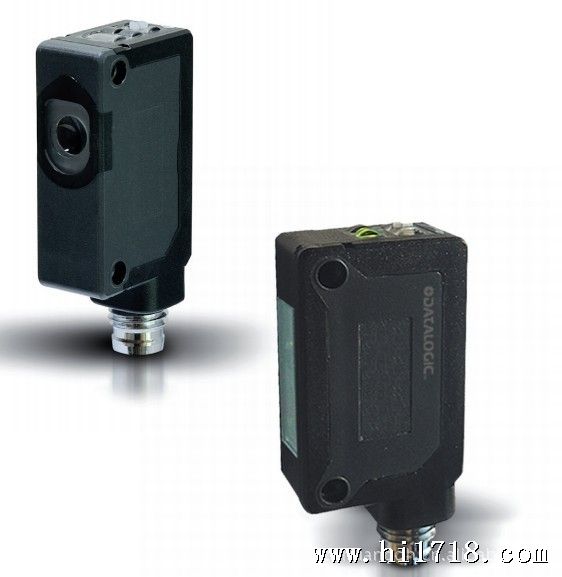

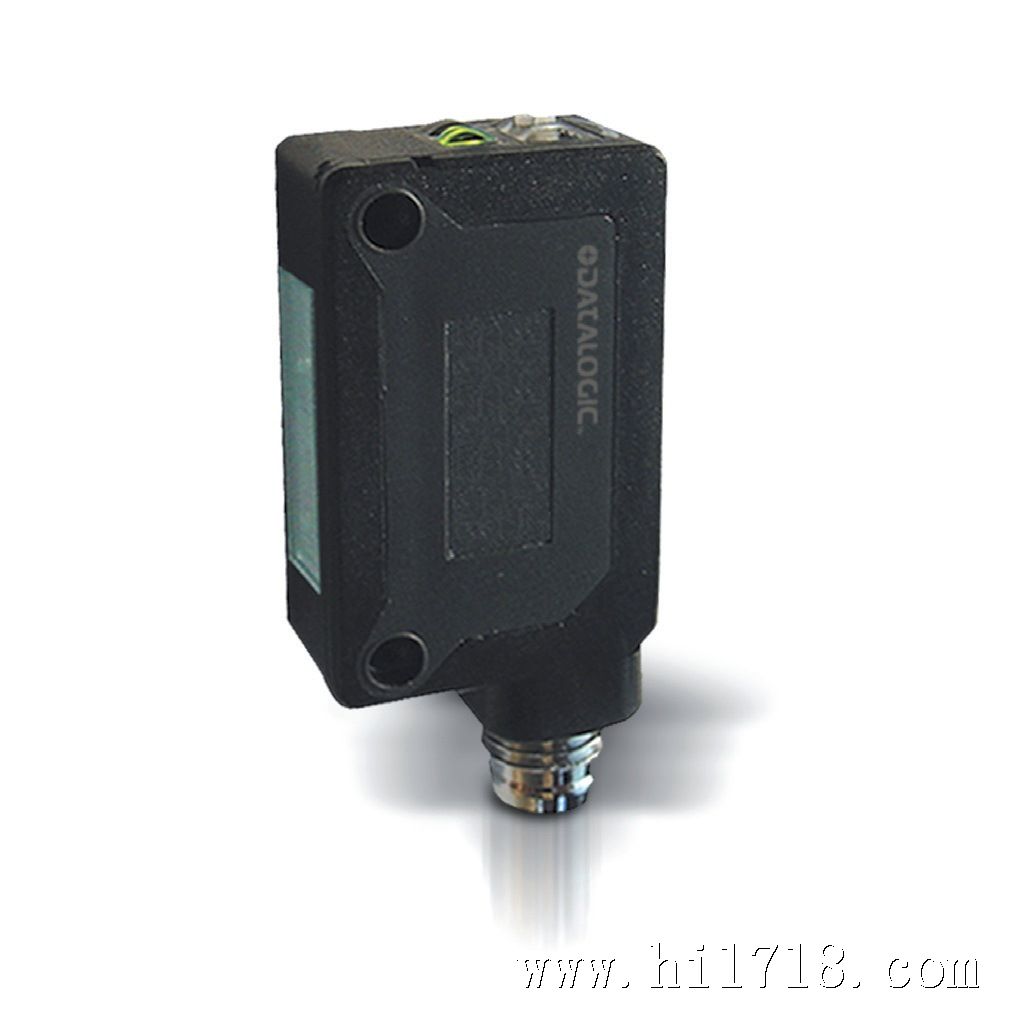

S3Z

产品简介

小型S3Z系列产品是光电传感器的基本系列产品，提供各种对射、偏振镜反射式、漫反射和背景抑制检测的型号，提供红色LED光源、旋钮调节、M8 4芯带插头或2米电缆连接。

特点与优点

• 的读取性能：很高的检测可重复性
• 基本系列产品：适用于各类主要的工业应用
• 电缆或M8 4芯连接器：灵活的连接系统，能满足客户的各类应用要求。

应用范围

经过发展，该系列产品目前可以满足以下应用需求:

• 机器自动化
• 包装生产线
• 传送生产线
• 仓储自动化

型号      产品描述

S3Z-PR-2-C11-PL DIF-PROX PNP LIGHT CABLE

S3Z-PR-5-C11-PL DIF-PROX PNP LIGHT CONN

S3Z-PR-2-C11-PD DIF-PROX PNP DARK CABLE

S3Z-PR-5-C11-PD DIF-PROX PNP DARK CONN

S3Z-PR-2-C01-PL FOC PROX PNP LIGHT CABLE

S3Z-PR-5-C01-PL FOC PROX PNP LIGHT CONN

S3Z-PR-2-C01-PD FOC PROX PNP DARK CABLE

S3Z-PR-5-C01-PD FOC PROX PNP DARK CONN

S3Z-PR-2-B01-PL RRX-POL PNP LIGHT CABLE

S3Z-PR-5-B01-PL RRX-POL PNP LIGHT CONN

S3Z-PR-2-B01-PD RRX-POL PNP DARK CABLE

S3Z-PR-5-B01-PD RRX-POL PNP DARK CONN

S3Z-PR-2-FG01-PL RX/TX PNP LIGHT CABLE

S3Z-PR-5-FG01-PL RX/TX PNP LIGHT CONN

S3Z-PR-2-FG01-PD RX/TX PNP DARK CABLE

S3Z-PR-5-FG01-PD RX/TX PNP DARK CONN

S3Z-PR-2-C11-NL DIF-PROX NPN LIGHT CABLE

S3Z-PR-5-C11-NL DIF-PROX NPN LIGHT CONN

S3Z-PR-2-C11-ND DIF-PROX NPN DARK CABLE

S3Z-PR-5-C11-ND DIF-PROX NPN DARK CONN

S3Z-PR-2-C01-NL FOC PROX NPN LIGHT CABLE

S3Z-PR-5-C01-NL FOC PROX NPN LIGHT CONN

S3Z-PR-2-C01-ND FOC PROX NPN DARK CABLE

S3Z-PR-5-C01-ND FOC PROX NPN DARK CONN

S3Z-PR-2-B01-NL RRX-POL NPN LIGHT CABLE

S3Z-PR-5-B01-NL RRX-POL NPN LIGHT CONN

S3Z-PR-2-B01-ND RRX-POL NPN DARK CABLE

S3Z-PR-5-B01-ND RRX-POL NPN DARK CONN

S3Z-PR-2-FG01-NL RX/TX NPN LIGHT CABLE

S3Z-PR-5-FG01-NL RX/TX NPN LIGHT CONN

S3Z-PR-2-FG01-ND RX/TX NPN DARK CABLE

S3Z-PR-5-FG01-ND RX/TX NPN DARK CONN

S3Z-PR-2-M01-NL BGD-SUPP NPN LIGHT CABLE

S3Z-PR-2-M01-PL BGD-SUPP PNP LIGHT CABLE

S3Z-PR-5-M01-NL BGD-SUPP NPN LIGHT CONN

S3Z-PR-5-M01-PL BGD-SUPP PNP LIGHT CONN

S3Z-PR-2-T51-ND RRX TRANSP NPN DARK CABL

S3Z-PR-2-T51-PD RRX TRANSP PNP DARK CABL

9S3Z-PR-5-T51-ND RRX TRANSP NPN DARK M8

S3Z-PR-5-T51-PD RRX TRANSP PNP DARK M8

技术参数：

Narrow beam proximity operating distance: 50 ... 150 mm
Diffuse proximity operating distance: 0 ... 70 cm
Polarised retroreflex operating distance: 0.05 ... 4 m (on R5)
Through beam operating distance:   0 ... 15 m
Background suppression distance: 50 ... 250 mm
Power supply:  10 ... 30 Vdc
Consumption: 30 mA max.
Light emission   :  red LED 665 nm
infrared LED 870 nm
Setting: sensitivity trimmer
Indicators:  yellow OUTPUT LED
green STABILITY LED
green POWER ON LED
Output type: PNP or NPN (refer to table)
Operating mode: dark or light (refer to table)
Saturation voltage: ≤ 2 V
Response time:  1 ms
Switching frequency: 500 Hz
Output current:  ≤ 100 mA
Connection:  2 m cable, Ø 3.5 mm
4-pole M8 connector
Mechanical protection:  IP67
Protection devices: A, B
Housing material:  PC / PBT
Lens material:  PMMA
PC
Weight: 10 g
50 g
Operating temperature: -25 ... +55°C
Storage temperature: -25 ... +70°C
