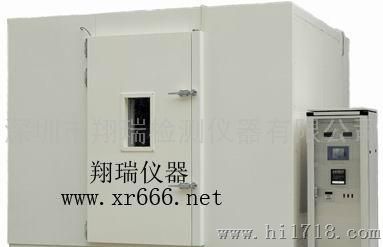

翔瑞老化房试验室 深圳老化实验室价格
价格:电议
地区:广东省 深圳市
电 话:0755-21501860
手 机:15811828799
传 真:0755-26703910
产品品牌:
翔瑞
产品型号:
XR-GWS

适合电子、电器、仪表、食品、车辆、金属、化学、建材、航天、医疗……等制品,检测质量之用

主要技术指标:

工作室尺寸 Dimension of the working chamber 5、10、20、50、100立方米(客户需求定做) 5、10、20、50、100 m3(Customer demand for customized)
测试范围Test Range 温度范围 Temperature range 常温+10℃~80℃\100℃\120℃(可选) 常温+10℃~80℃\100℃\120℃(Optional)
温度 Temperature accuracy ±0.1℃
温度均匀度 Temperature evenness ±2℃(局部小范围内可达到±1℃) ±2℃(Partially could be ±1℃)
升降温速率 Or cooling rate 1℃、2℃、3℃、4℃、5℃/min(可选) 1℃、2℃、3℃、4℃、5℃/min(Optional)
注:以上指标均在常压、空载条件情况下测得。 Note: The above indexes are all obtained under the normal pressure and empty running
材质Material 库体外壁材料 The material for the external wall 优质彩钢板 High quality color steel board
库体内壁材料 The material for the internal wall SUS304不锈钢板,耐腐蚀,易清洁,美观大方 SUS304 stainless steel board, erosion resistant, easy to clean, elegant in appearance
保温材质 Heat insulation material 聚胺脂硬质发泡加防火PC绝缘材料(环保材料) Polyurethane hard foam plus fireproof PC insulation material.(Eco-friendly material)
门 Door 双开门,双面全不锈钢门边耐高温防火硅橡胶二层密封,设计反锁装置防止人员入室后被锁 Double door, all stainless steel edge on both sides, sealed with two layers of heat-resistant fireproof silicone rubber.  Reversely locked device to prevent persons being locked inside the chamber.
视窗 View window 门上带可视窗口约300×380mm电镀膜防潮隔温观察窗 There is a view window on the door, which is about 300×380mm,and is plated for dampproof and heat insulation.
测试孔 Test hole 可选择安装多个¢50mm数据线测试孔 Several ¢50mm data lines test hole can be selected to install
电源 Power 380±10%v;50Hz、三相五线制; 380±10%v, 50Hz, 3 phase and 5 lines;
