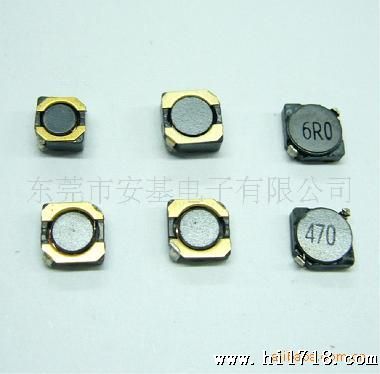

品名构成Product Identification

WBD

5D28

4R7

N

—

R

①

②

③

④

⑤

①

系列名称SERIES NAME

②

尺寸DIMENSIONS

③

电感量INDUCTANCE

④

误差TOLERANCE CODE(J:±5%  K:±10% L:±15% M:±20% P:±25% N:±30%)

⑤

包装方式PACKING CODE(R-TAPE  B-BULK)

Part No

L

(uH)

DCR max

(mΩ)

IDC max

(A)

Test Freq.

(Hz)

1.Inductance tested at 100KHZ,0.1V

2.SRF>13MHz measured using agilent/hp8753D

network analyzer
2.Inductance drip=35% typ. at rated isat
3.△T=40℃rise typ. at irms
4.Operationg temperature range -40℃to +125℃
5.Electrical specifitions at +25℃

Packing;

Reel size:12mm

Quantity:2000pcs/Reel

WBD5D28-2R6N

2.6

18

2.6

100KHZ

WBD5D28-3R0N

3.0

24

2.4

100KHZ

WBD5D28-4R2N

4.2

31

2.2

100KHZ

WBD5D28-5R3N

5.3

38

1.9

100KHZ

WBD5D28-6R2N

6.2

45

1.8

100KHZ

WBD5D28-8R2N

8.2

53

1.6

100KHZ

WBD5D28-100N

10

65

1.3

100KHZ

WBD5D28-120N

12

76

1.2

100KHZ

WBD5D28-150N

15

103

1.1

100KHZ

WBD5D28-180N

18

110

1.0

100KHZ

WBD5D28-220N

22

122

0.9

100KHZ

WBD5D28-270N

27

175

0.85

100KHZ

WBD5D28-330N

33

189

0.75

100KHZ

WBD5D28-390N

39

212

0.70

100KHZ

WBD5D28-470N

47

250

0.62

100KHZ

WBD5D28-560N

56

305

0.58

100KHZ

WBD5D28-680N

68

355

0.52

100KHZ

WBD5D28-820N

82

463

0.46

100KHZ

WBD5D28-101N

100

520

0.42

100KHZ
