100W家车两用笔记本电源 手调电脑充电器 笔记本电源适配器
价格：电议
地区：
电 话：0755-84664880
手 机：13267207143
传 真：518111
-
图文详情
-
产品属性
-
相关推荐

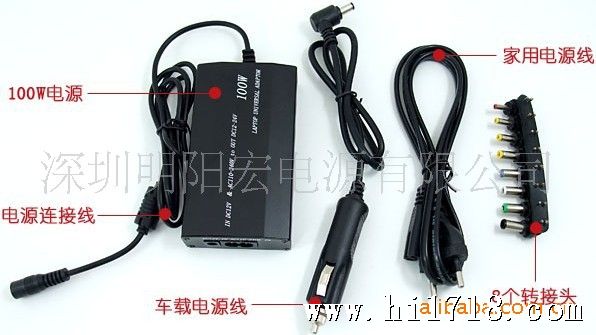

This model is 100W 2in1 universal AC & CAR for laptop and 5V USB digital adapter , with double USB 5V power ports, charge almost brands laptop in car or at home ,also can charge Mobil Telephone , PDA,MP3,…5V at the same time, switching-mode power supply.Use at home, also be use in 12V car
The follow 3 functions be use discerption
Function 1:
AC adapter part :Operation at input AC 100V to 260V 1.5A 47-63HZ,output DC12,15,16,18,19,20,22,24V 100watt max,with Overload protection ,Over voltage protection ,Short Circuit protection , power supply by mains supply.
Function 2:
Car adapter part :Operation at input DC 11-14V 10A MAx, output DC12,15,16,18,19,20,22,24V,100Wwatt max,with Overload protection, Short Circuit protection ,power supply by CAR 12V
Output with double USB 5V power ports, use a USB connector can charger mobil telephone ,MP3,MP4,PDA …etc at the same time .
Adjust and Select output voltage 12-24V to suit to laptop before use.
2. AC adapter part electriccharacteristics:
No. | Item | Specification |
1. | Rated Input Voltage | AC120V OR AC230V |
VibrationInput Voltage Range | AC120V-260V | |
2. | Input Rated Current | 1.5AMP |
Input Min. Current | 0.1A | |
3. | Input Power | 100W |
Efficiency | >80%(TYP) | |
4. | Output voltage:12V/15V/16V/18V/19V/20V22V/24V/(-0.9/+0.8V NO LOAD)
| DC12-24V |
5
| Output voltage:12V/15V/16V/18V/19V22V/22V/24V/(-0.9/+0.8 Vrating load)
| DC12V-24V
|
6 | Output power:100watt max |
|
7 | Overload protection | YES |
8 | Short Circuit Protection | YES |
9 | Line Regulation | +/-5% |
我工厂是生产笔记本电源、移动电源、笔记本电源适配器的厂家，我工厂主营AC/DC和DC/DC电源适配器按输出功率共分为70W,80W,90W,100W,120W.可适用于不同电子产品，有家用，车充，二合一，三合一系列，品种全，款式新。适合不同型号的多款笔记本电脑，其中包括Acer,AST，Compaq，Dell，Fujitsu，HP,IBM,Panasonic，Samsung，Sony，Toshiba和其他众多品牌。带有USB接口输出5v/2A，可作为手机、掌上电脑、MP3、MP4等设备的充电器使用。具备12V输出的型号还可以用于液晶显示器和手提DVD等设备使用。
支持笔记本电脑和液晶显示器，可在汽车和家庭使用。
