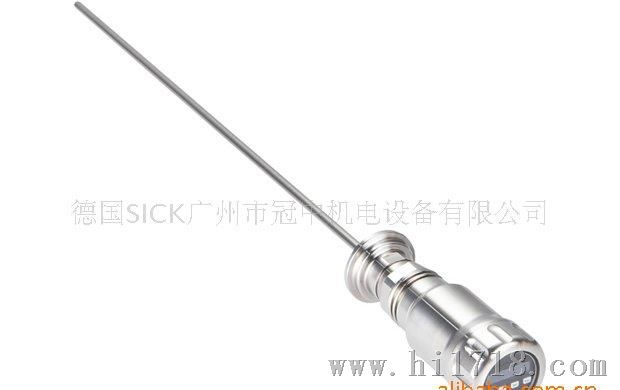

德国SICK液位开关LFP1000-G1A
价格：电议
地区：
电 话：86 20 37651253
传 真：86 20 37651253

德国SICK广州市冠中机电设备有限公司

免费会员 营业执照未上传

>
全部产品 进入商铺
Model NameLFP1000-G1AMB
Part No.


At a glance

 Level monitoring in hygienic applications
 Manually retractable monoprobe up to 2,000 mm long with Ra ≤ 0.8 µm
 Process temperature up to 150 °C, process pressure up to 16 bar
 CIP/SIP resistant
 IP 67 and IP 69K enclosure rating
 Interchangeable hygienic process connections
 3-in-1: combined display, analog output and binary output
 Analog output 4 mA ... 20 mA / 0 V … 10 V, switchable, plus two binary outputs

Your benefits

 Robust design increases service life
 High flexibility due to retractable probe and interchangeable connection concept
 Cost savings due to multiple output signals: one system for both level detection and continuous level monitoring
 Time and cost savings due to low maintenance and quick commissioning
 No calibration or recalibration required for commissioning, thus saving time and costs











Features
Medium:Fluids
Measurement:switch, continuous
Probe length:1,000 mm
Process pressure:-1 bar ... 16 bar
Process temperature:-20 °C ... 150 °C
EHEDG approval:
GOST approval:
RoHS certificate:




Performance
Dielectricity constant:>= 5
Repeatability:<= 2 mm
Resolution:< 2 mm
Accuracy of sensor element:± 5 mm
Conductivity:no limitation
Inactive area at process connector40 mm1)
Inactive area at probe end10 mm2)
1)2)With water under reference conditions



Mechanical data
Housing material:303
Process connection:G 3/4 A
Wetted parts:316L (Ra ≤ 0,8 µm), PEEK
Max.probe load:6 Nm




Electrical data
Supply voltage12 V DC ... 30 V DC1)
Power consumption:<= 75 mA at 24 V without output load
Initialization time:<= 2 s
Connection type:M12x1, 5-pin
Response time:< 400 ms
Signal voltage HIGH:Vs - 2 V
Signal voltage LOW:≤ 2 V
Output current:< 100 mA
Output load:0 V ... 10 V > 750 Ohm at Uv >= 14 V, 4 mA ... 20 mA < 400 Ohm at Uv > 12 V, 4 mA ... 20 mA < 500 Ohm at Uv > 13,5 V
Upper signal level:20 mA ... 20.5 mA
Lower signal level:3.8 mA ... 4 mA
Capacitive load:100 nF
Inductive load:< 1 H
Enclosure rating:IP 67: EN 60529, IP 69K: EN 40050
Temperature drift:< 0.1 mm/K
Protection class:III
EMC:EN 61326-1:2006, 2004/108/EG
Interference resistance:EN 61000-6-2:2005
Interference emission:EN 61000-6-4:2007
Single shock:EN 60068-2-27
Continuous shock:EN 60068-2-29
1)All connections are polarity protected. All outputs are overload and short-circuit protected.



Ambient data
Ambient temperature, operation:-20 °C ... 60 °C
Ambient temperature, storage:-40 °C ... 80 °C
