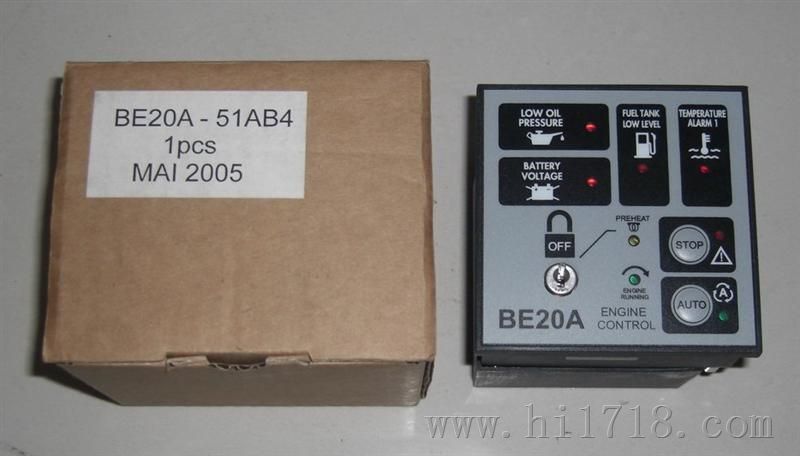

BE20A控制器
·此模块监控一个柴油机，包括一个30安的手动启动按键开关，Be20A安排自动的启动提供了输出端口。
·主要特点.....................................;
·96x96，温度范围：-30°/+70°C
................................................
·7个输出端口，5个开关输入端口，1个模拟输入端口
.................................................
·预热装置，7伏到33伏特的直流电压
..................................................
·8个发光二极管，2个按钮，30安按键开关
..................................................
·手动操作模式和自动操作模式
......................................................
·4次启动尝试，4秒；曲柄/3秒；停止时间
......................................................
·燃油警报后延缓5分钟停机
.......................................................
·闪烁并且稳定的发光二极管，警报内存
........................................................
·15个快速开启连接终端 6,3x0,8
...........................................................

Be20 This module monitors a diesel engine and includes a 30A Key-switch for manual start.Automatic fault protections include:Low oil pressure,High Temperature,Emergency and Belt break.The Be20B provides the following outputs:Start, Stop,Preheat,Alarm and Fuel solenoid.The Be20B provides outputs to arrange automatic starting.
DIN 96x96x50,temperature range -30/+70°C
7 outputs,5 switch inputs,1 analog input
Pre-Glow setting,7Vdc up to 33Vdc supply
8 LEDs,2 push-buttons,30A Key-Switch
Manualand Automatic operating modes
4 starting attempts:4 secs(Crank),3secs(RestTime)
Fuel warning with 5 minutes delay shutdown
Blinking and steady LEDs,Alarm-Memory
15 Fast-on connection terminals 6,3x0,8
